This morning (with the help of Maria and Federico from remote) I recovered manually environmental sensors which had been off since the power outage. Sensors in CEB, MCB and FCEB were affected.
Most sensors recovered successfully.

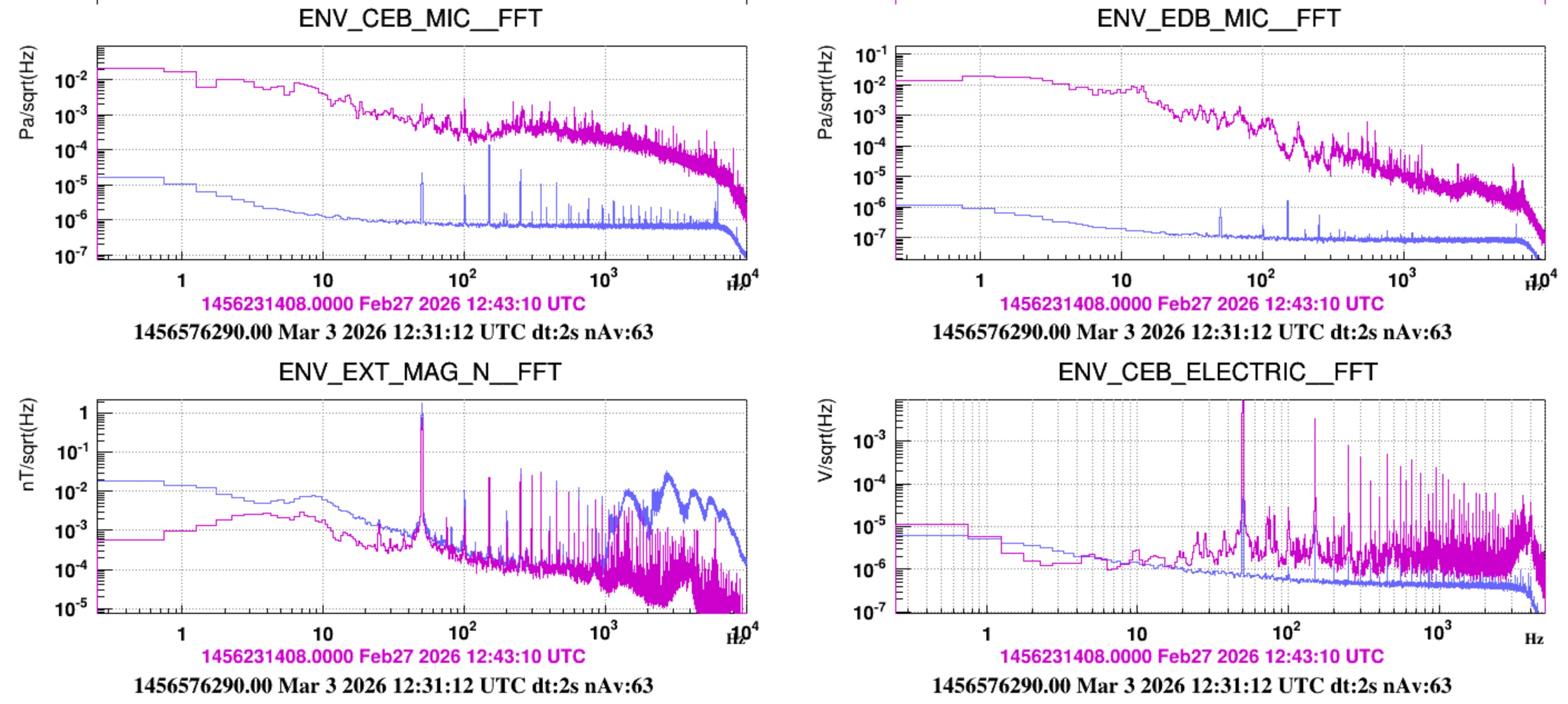

Sensors which still have troubles are the following:
- ENV_CEB_MIC and ENV_EDB_MIC microphones are still off because their Nexus driver (DAQ room) didn't come back on. One possibility, already occurred in the past, is that the AC/DC converter is damaged and needs to be replaced.
- ENV_CEB_ELECTRIC. The Stanford differential voltage meter lost its settings and needs to be reprogrammed. To be done at next occasion. Federico provided instructions, here reported for future reference: "Set in differential mode, band limited from below 1Hz to above 10kHz with some margin, and tune Gain up to recovering the signal level pre-shutdown, by looking at tred rms value".
- ENV_EXT_MAG_N, external magnetometer. Probably the battery (located in the external shelter box) did not survive the prolonged shut down of the DC voltage supplier (loacted in DET EEroom) which we turned back on, but is not cable to bring the battery at the desired 24V. Probably the battery has to be replaced. The magnetometer signal is there but looks noisy, al least above 1kHz, to be monitored.
