Detector Characterisation (Spectral lines)
fiori, tringali, chiummo, paoletti, mwas - 15:37 Wednesday 20 December 2023 (62796) Print this report
check of hrec peaks during a period with high B1p power

Michal pointed out that last Sunday (Dec 17) there was mistuning of the relative curvature of the north and west arm: https://logbook.virgo-gw.eu/virgo/?r=62766.

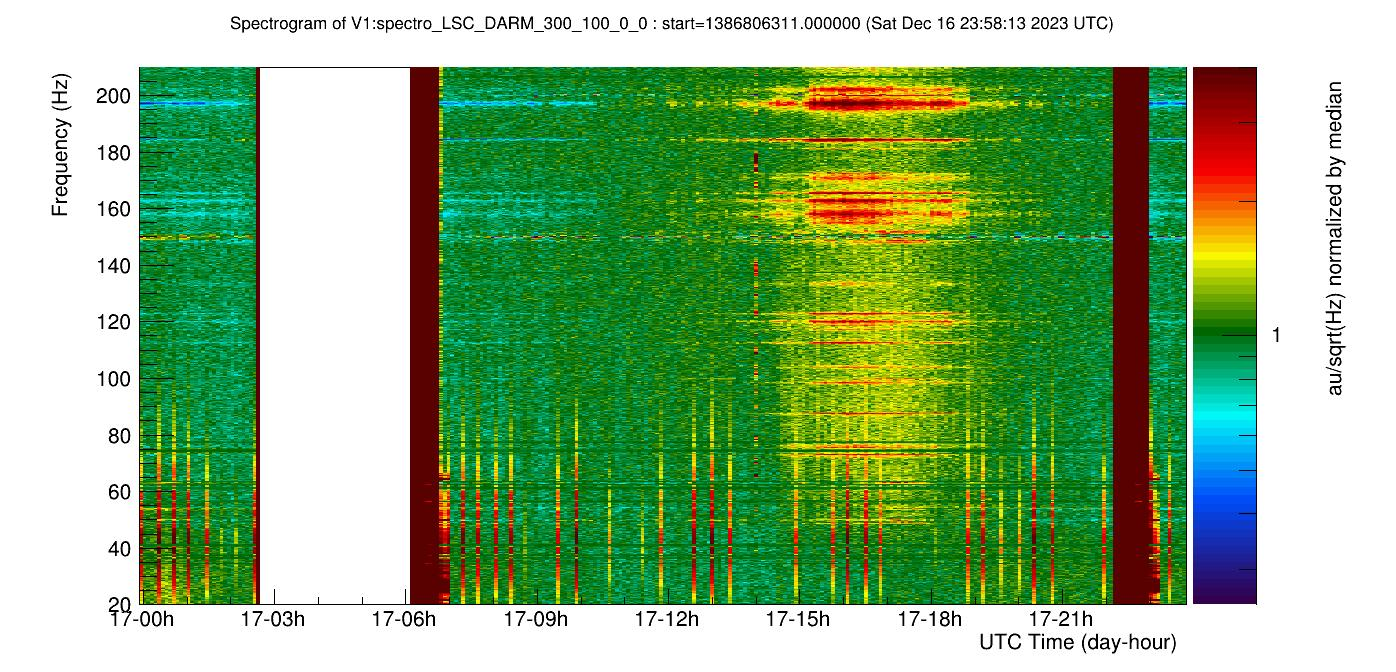

Due to this between 15:00 and 18:00 UTC the B1p power was higher by about a factor 2, and many lines became much higher in DARM (Figure 1).
These lines might be related to some mechanical resonances on the detection side (if it is scattered light related) or to the injection side (if it is frequency noise related).

Most of the peaks had indeed been already observed, as reported in https://logbook.virgo-gw.eu/virgo/?r=62730, many peaks have also been excited with environmental actions (tappings: https://logbook.virgo-gw.eu/virgo/?r=61929 , https://logbook.virgo-gw.eu/virgo/?r=62172  and https://logbook.virgo-gw.eu/virgo/?r=62759).

The fact that peaks are excited with tappings on the vacuum chambers and moreover that some are coherent with accelerometers attached to the chamber, suggests that these peaks are mechanical modes of the chamber itself or of objects attached to the chamber (like e.g. baffles) which happen to back scatter some light.

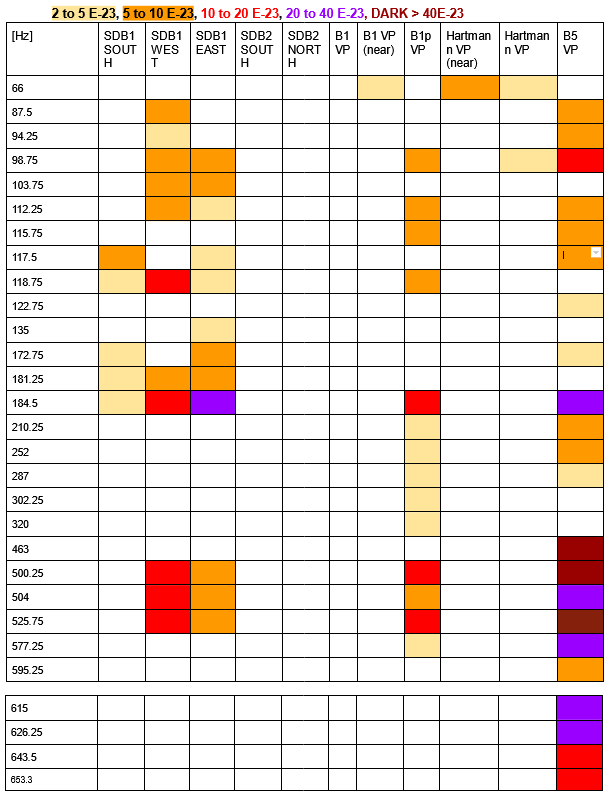

This table lists all these peaks and summarizes some info. See also this table: https://logbook.virgo-gw.eu/virgo/uploads/62172_1697216708_tabella_tappings.png

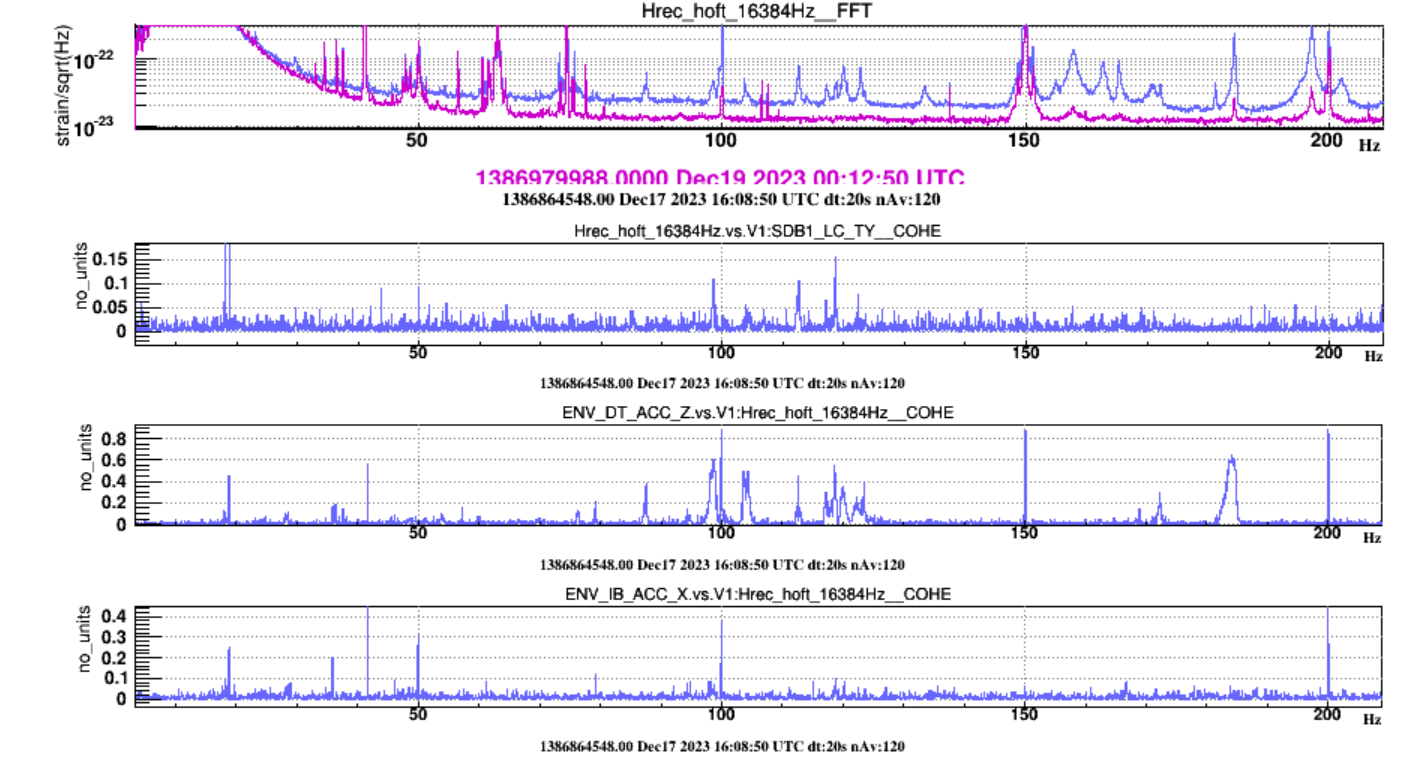

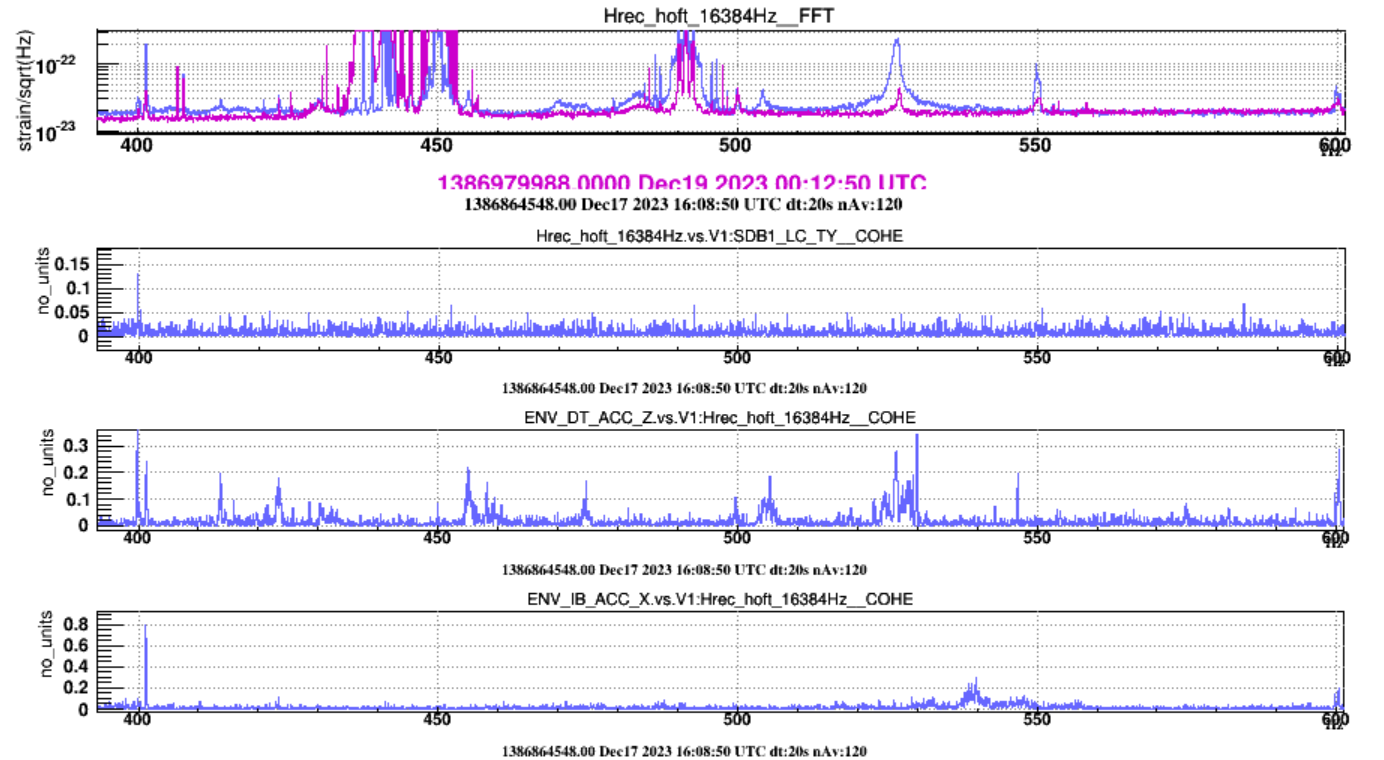

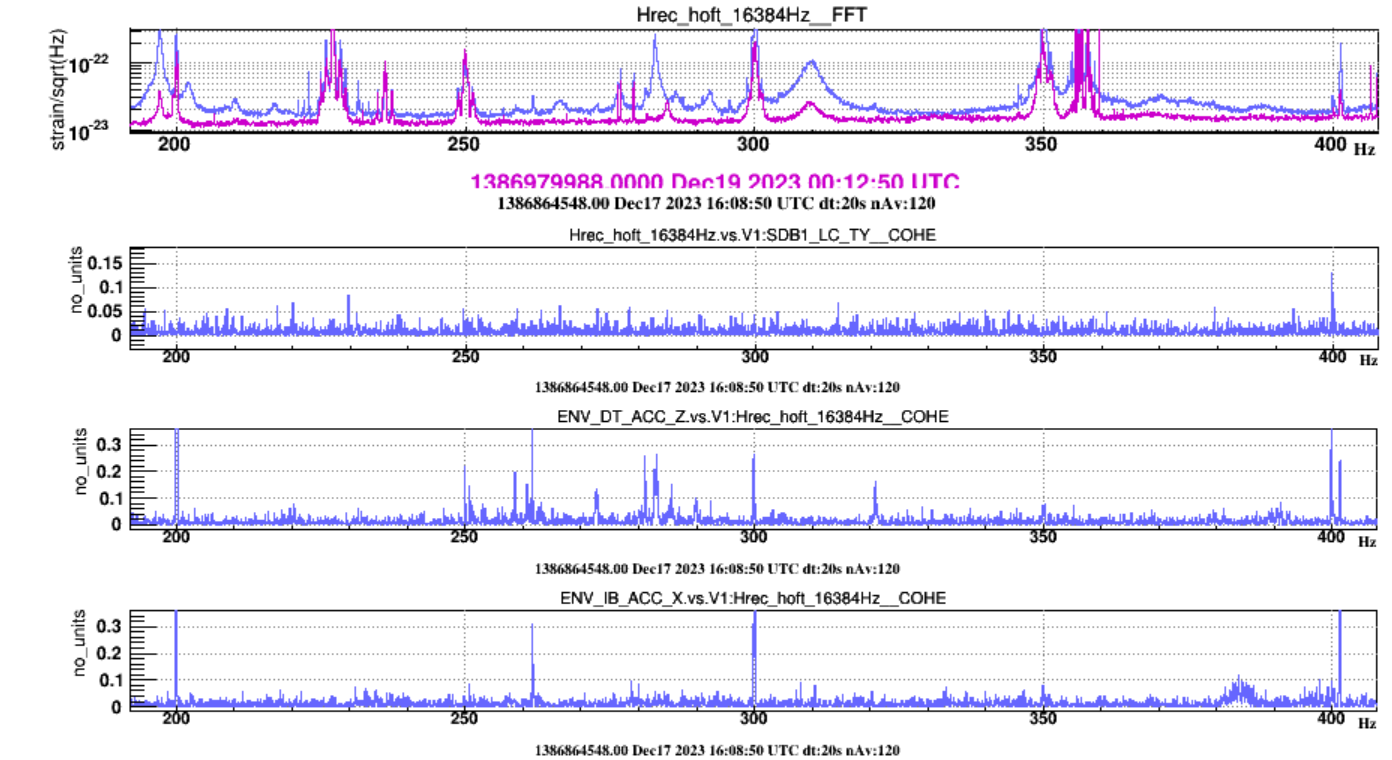

Attached figures 2 to 4 show the observed coherence.

Frequency(Hz) excited with ...         coherence with ... present in a good hrec reference (Dec 19 00:00, 49Mpc) notes
87.6 tapping SDB1   DT_ACC no
98.5 tapping B5 vp DT_ACC and SDB1_LC_TY no
103.6 tapping B1p vp DT_ACC and SDB1_LC_TY no
112.5 tapping SDB1 W DT_ACC and SDB1_LC_TY no
117.2 tapping B5 vp DT_ACC and SDB1_LC_TY no
118.8 tapping SDB1 W, seen associated mode in DT_ACC DT_ACC and SDB1_LC_TY no
120   DT_ACC no
122.8   DT_ACC no
133.4     no
157 magnetic injections CEB https://logbook.virgo-gw.eu/virgo/?r=60953   yes pesent since O3
162.7     yes
165     yes
170.9     no
172.2 tapping SDB1 E DT_ACC no
181.2 tapping SDB1 E
184.2 tapping B5 vp DT_ACC (large) yes
197 magnetic injections CEB https://logbook.virgo-gw.eu/virgo/?r=60953   yes present since O3
202 (wide)     no
261.5     no
272   DT_ACC no
282.7   DT_ACC no the peak always present in hrec is at 284.5
309.6   (hint that we excited it from SDB1, see elog 62759) yes
320.9 tapping B1p vp DT_ACC no
401.2   IB_ACC, DT_ACC yes this peak is associated to the Turbo Pump of INJ. See also https://logbook.virgo-gw.eu/virgo/?r=61062
455   DT_ACC no
504 tapping B5 vp DT_ACC no
526.3 tapping B5 vp DT_ACC yes





Images attached to this report
Comments to this report:
ruggi - 16:05 Wednesday 20 December 2023 (62800) Print this report

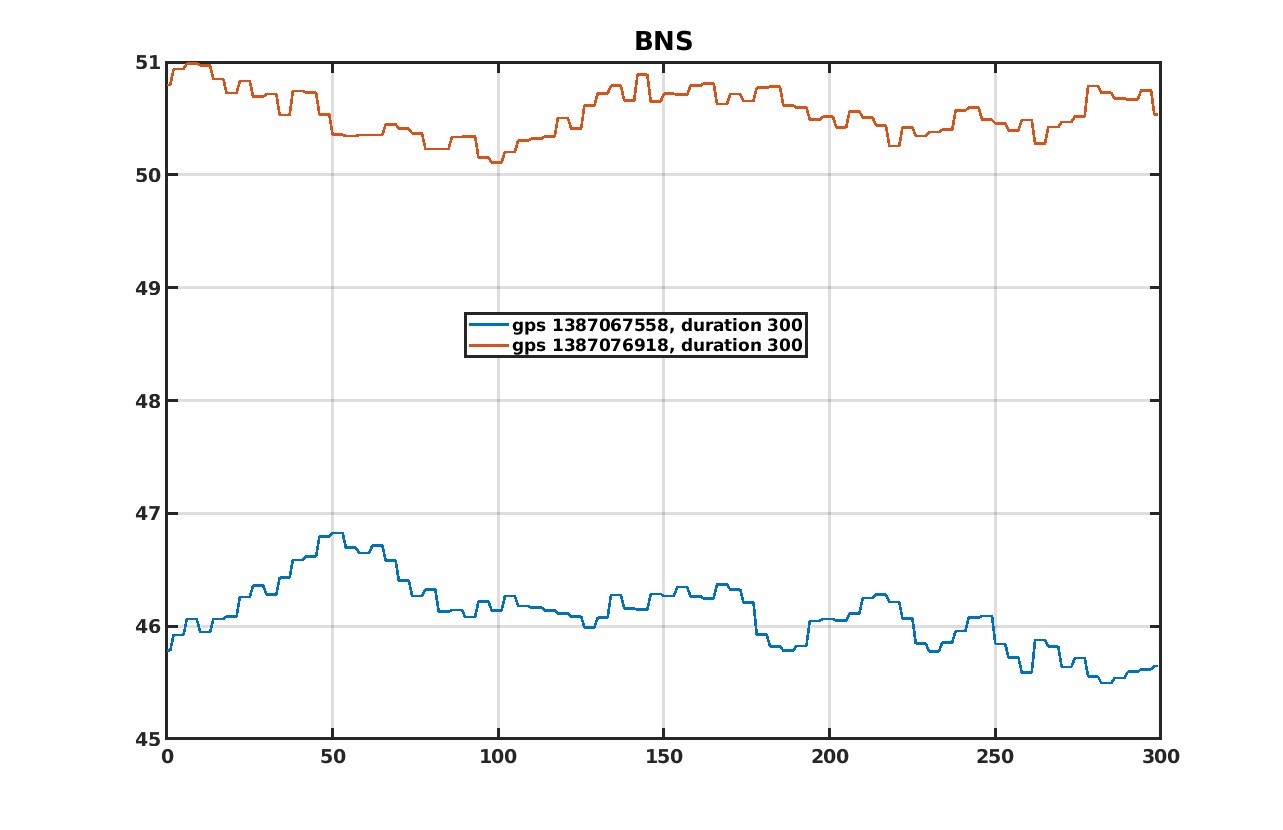

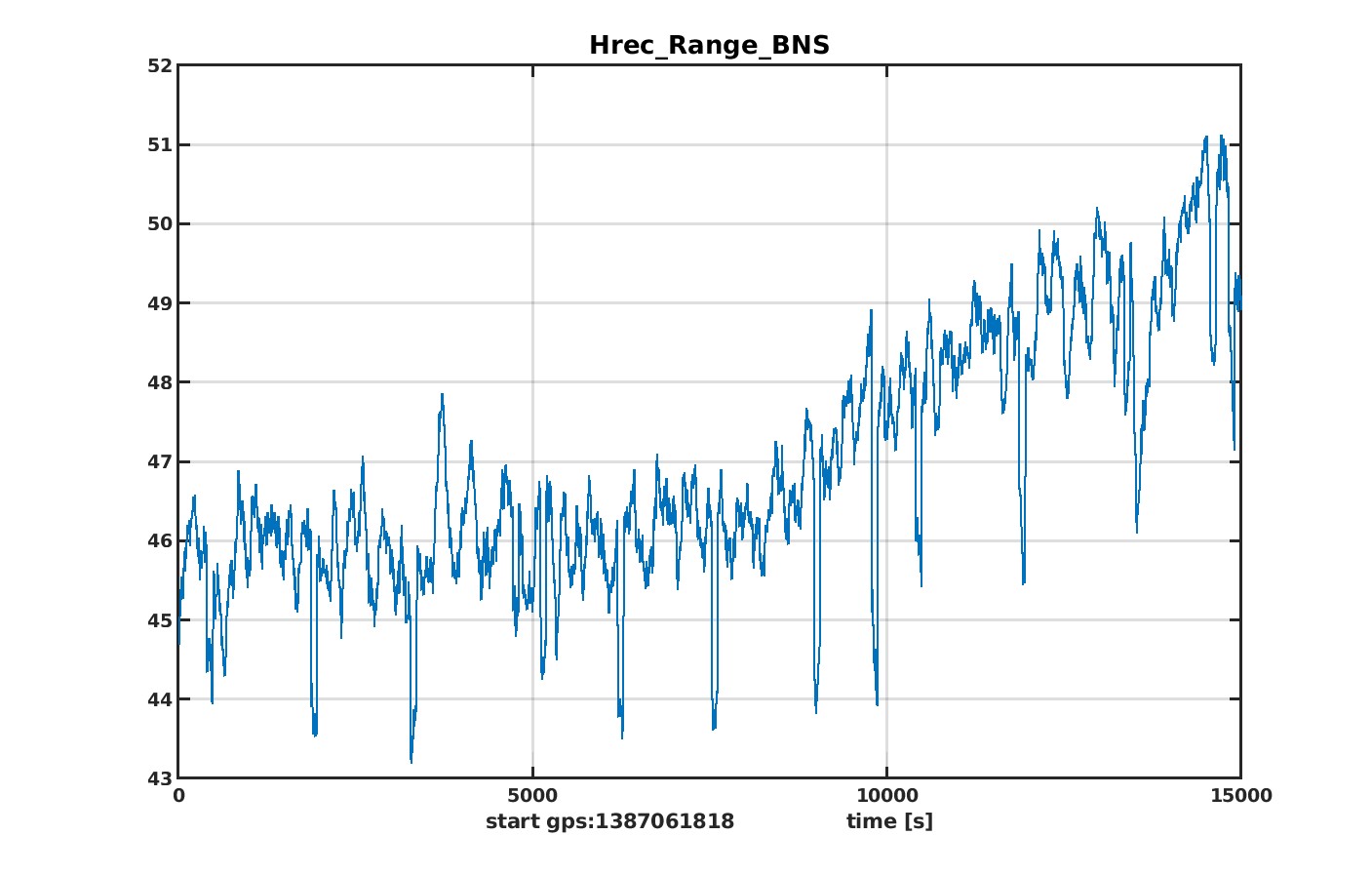

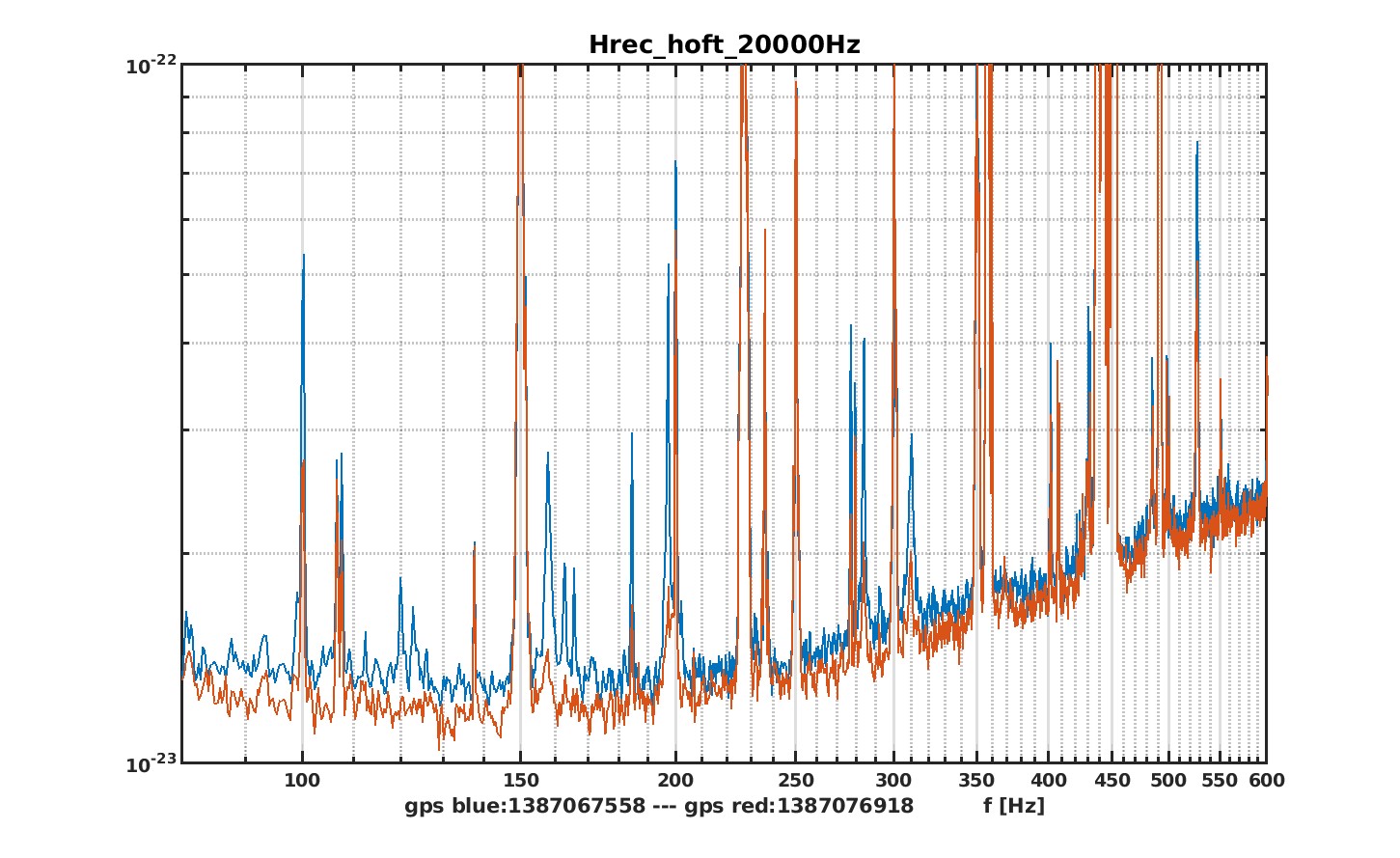

The impact of the peaks listed in this entry changed a lot during the night. Fig 1 shows the slow variation of BNS range, which passed from 46 Mpc to more than 50 Mpc. Comparing the data in the two opposite conditions, one can see in hrec a small change in the floor and a huge change in the peaks (fig 3).

Images attached to this comment
fiori - 17:57 Wednesday 03 January 2024 (62883) Print this report

These peaks have been added to the lines DB, tagged as "preO4".
