Environmental Monitoring (Environmental Monitoring)
fiori, tringali - 22:35 Thursday 07 December 2023 (62672) Print this report
25-minute glitch investigation: changed temperature in the electronic rooms

We acted in order to increase by a few degrees the temperature of some electronic rooms inside the CEB, in particular:

  • DAQ room: we left on only the fan coil #1 (left side near the desk) at the minimum speed
  • DET EE room (DER): we switched off both splitters (there is no way to regulate the speed)
  • EER room: we changed the splitter temperature set point from 21 to 25 deg
  • IER (piscina): we changed the temperature set point point of both splitters from 22 to 26 deg

These actions were performed between 17:24 and 18:14 UTC. We caused an unlock of the ITF while moving out of the EE room.

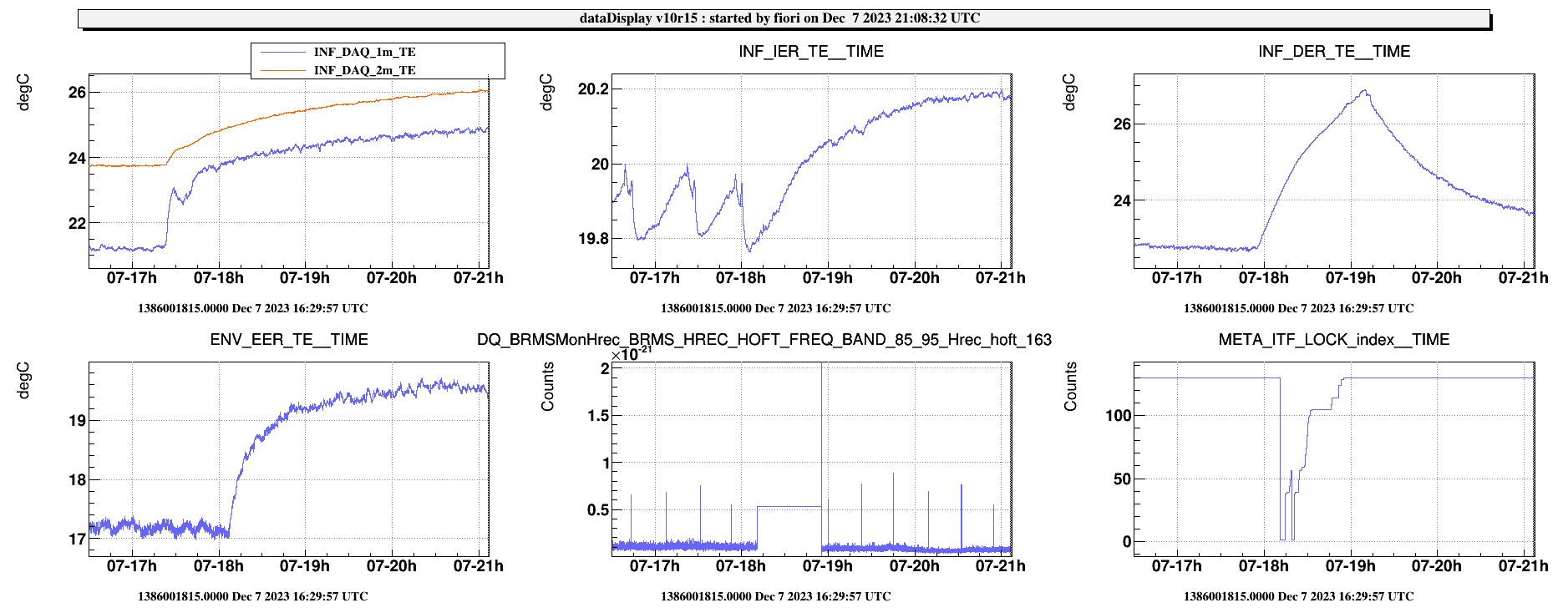

We observed the rate of the glitches for 1 hour before the actions and for 2 hours after the actions (Figure 1).

Between the two observation times the temperature of the rooms had increased by a few degrees: DAQ room 3deg, DET EEroom 4deg, EE room 2 deg, IER 0.2 deg

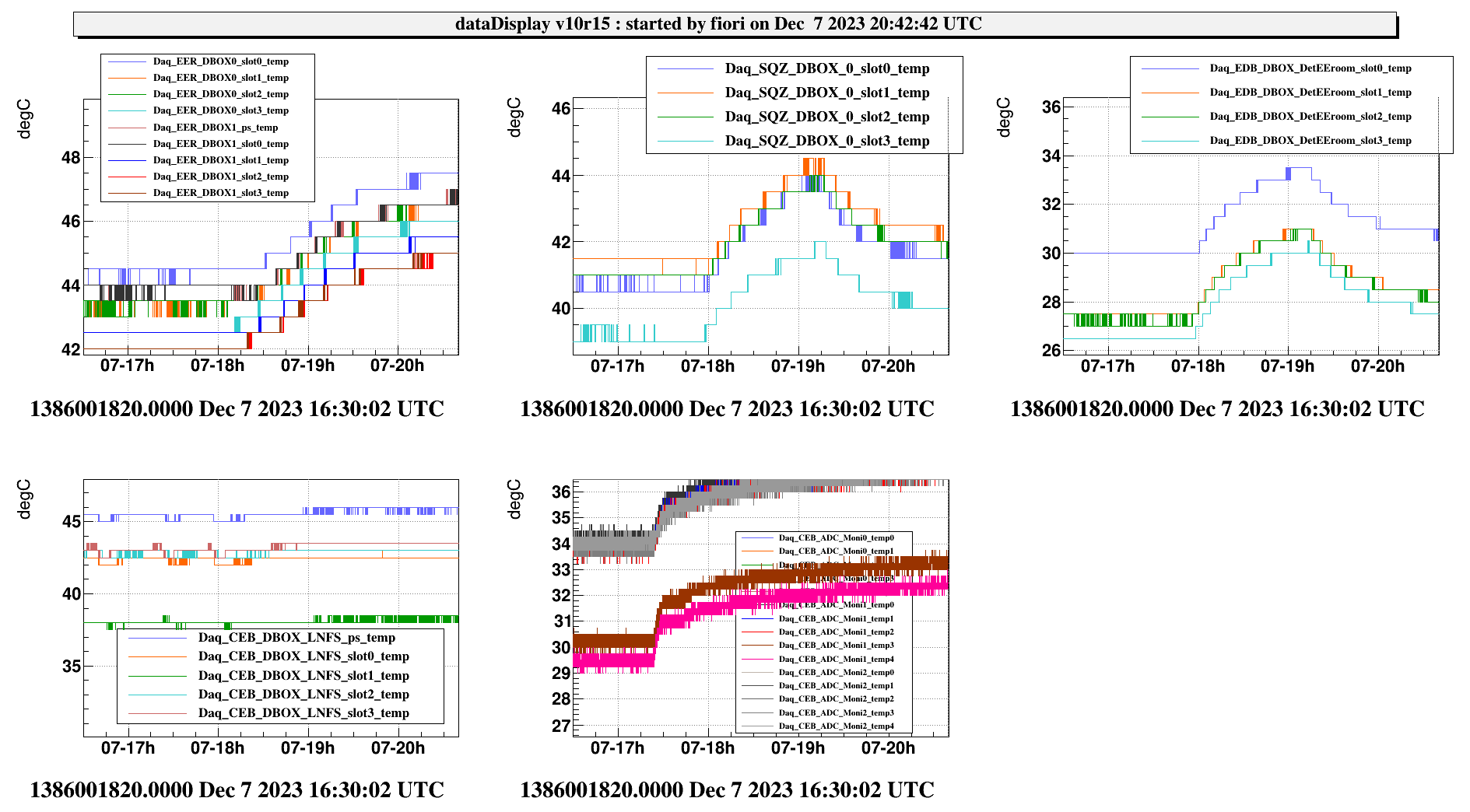

Similar temperature changes are measured by the sensors in the rooms (Figure 1) and by the sensors inside some electronics boards (Figure 2).

The rate of the glitches has not changed in significant way :-( (Figure 1)

Note that the temperature of the IER had a very little change.

We conclude the shift by returning all to the initial condition.

Images attached to this report
Comments to this report:
Fiori, Tringali - 18:50 Saturday 16 December 2023 (62761) Print this report

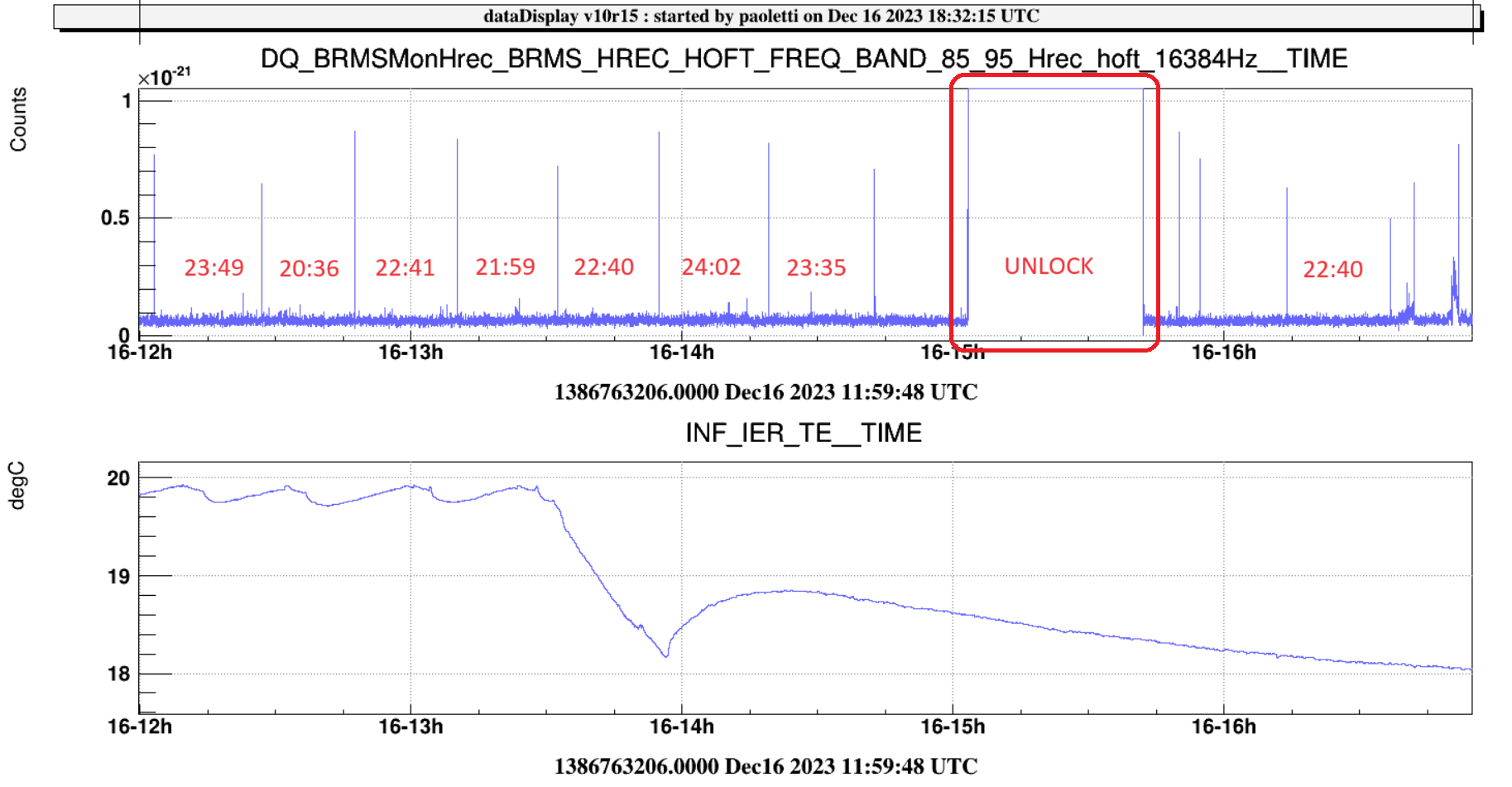

We changed the setpoint temperature of both splitters in the IER (piscina) from 22 to 17 deg at ~13:30 UTC. We decided to maintain this value throughout the night.
Tomorrow the operator will reset the setpoint to 22 deg.

Paoletti - 20:09 Saturday 16 December 2023 (62762) Print this report
Images attached to this comment
Paoletti - 10:39 Sunday 17 December 2023 (62768) Print this report

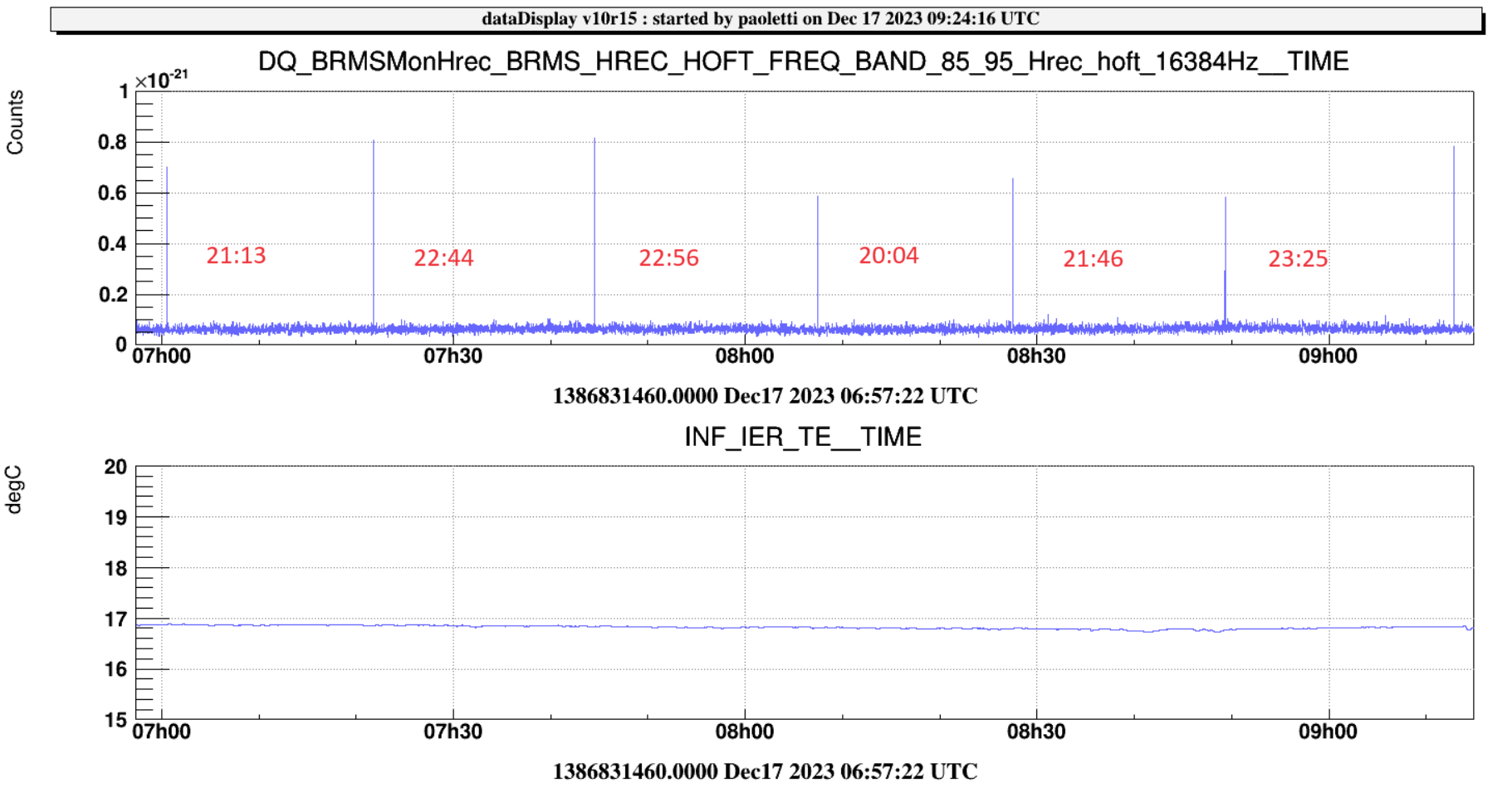

It is confirmed that the glitch rate has not changed, although the IER temperature has decreased from 20 to 17 degrees. The average value is 1320s (22m) with a variability of +/- 100s circa.

Images attached to this comment
fiori, tringali, paoletti - 14:50 Monday 18 December 2023 (62775) Print this report

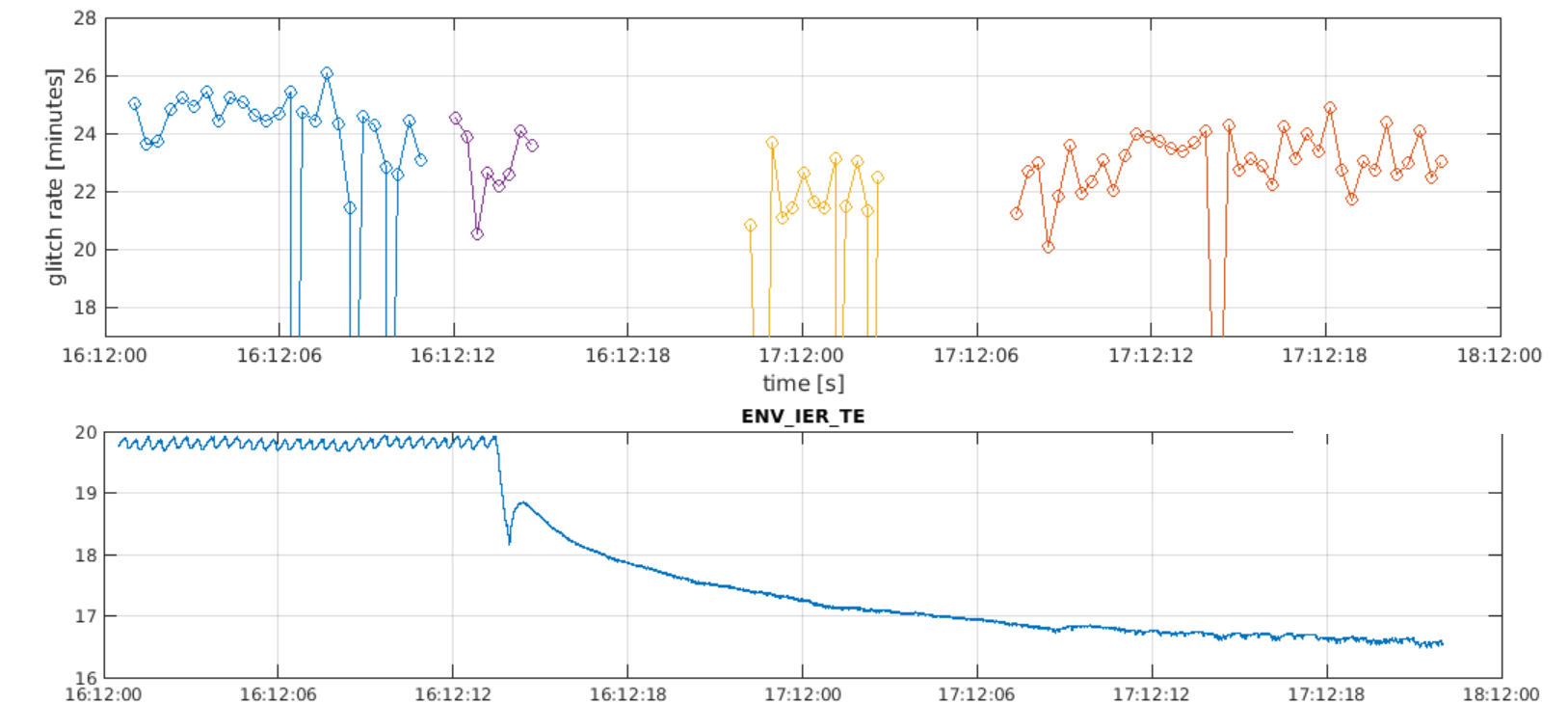

The attached plot looks the glitch rate and the temperature of the IER are compared during the last 48 hours. Although some change in the glitch rate occurs, this seems part of the natural variability of this rate and seems not correlated.

Images attached to this comment
Fiori, Paoletti - 22:32 Monday 18 December 2023 (62781) Print this report

At 21:20 UTC, we restored the temperature setpoint (22 deg) of IER.
