Environmental Monitoring (Environmental Monitoring)
fiori, paoletti, hardwick - 17:48 Friday 22 June 2018 (41948) Print this report
Shaking of IB tower

Early afternoon we injected some band limited noise with the shaker (big one) attached on the IB tower at platform level.

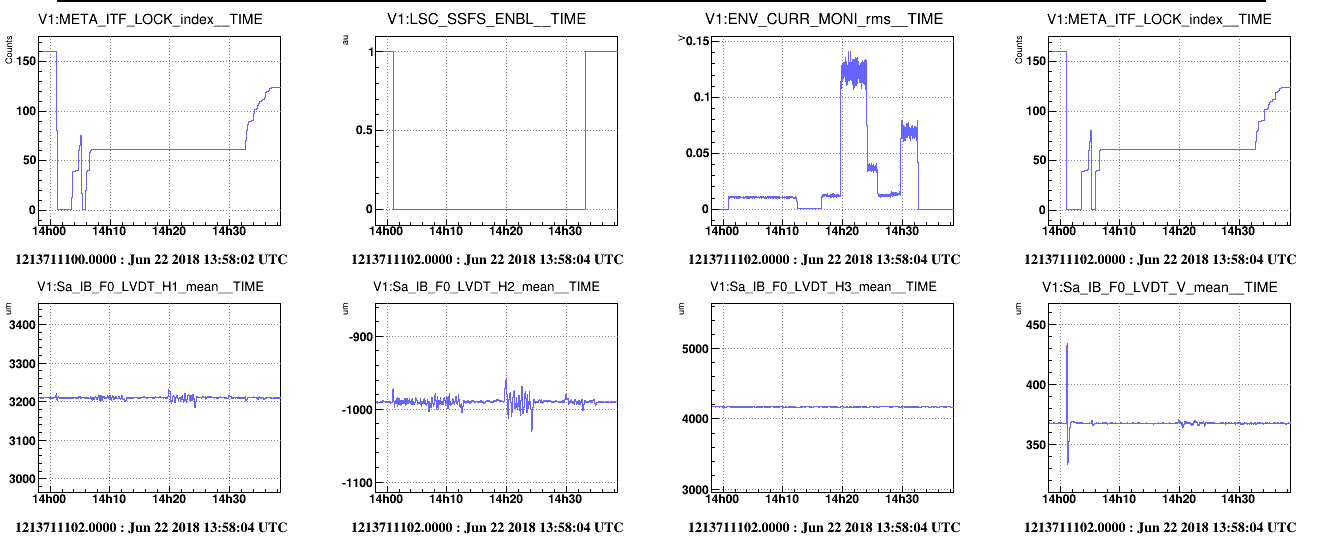

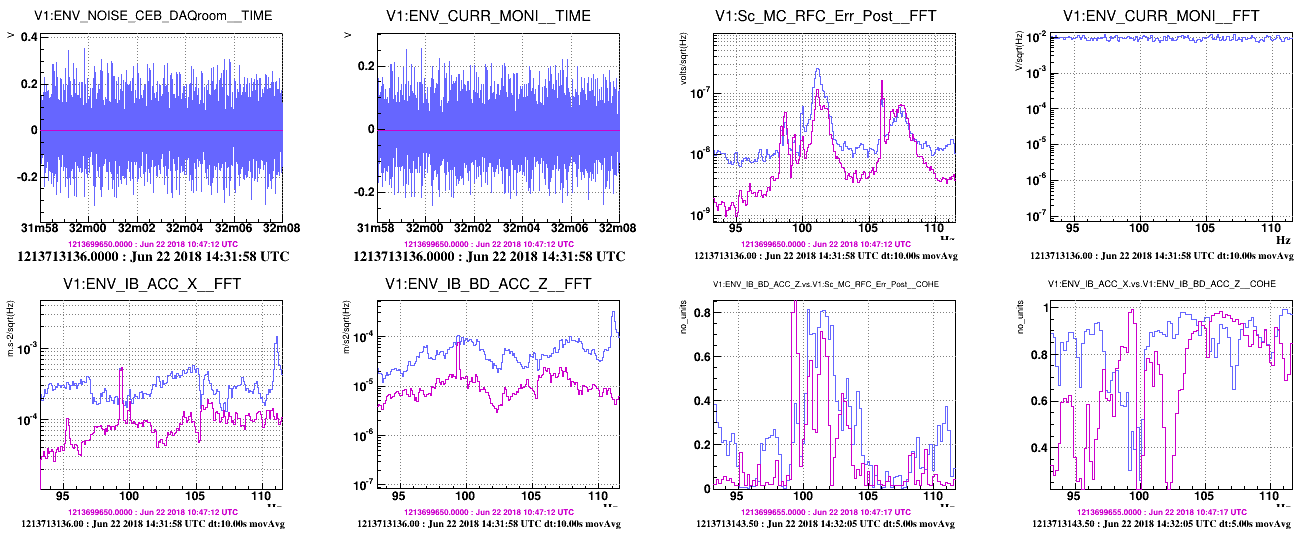

We encoutered some difficulties it doing the test in LOW-noise 3 because when starting the shaker although with very low noise level (and having set a 2s ramp time in the noise) we excited the IB suspension and unlocked. We then took some data with the ITF in state 62 (thought it was recombined as this morning, ...but actually not exactly (Figure 1). We see we excited by a factor 2 or so the 101Hz peak (apparently nothig else) while the accelerometers on IB N-flange (ENV_IB_ACC_X) and on RFC beam flange (ENV_ACC_IB_BD_Z) measured and increase of floor noise of about a factor 10 (Figure 2).

Here the gps:

colored noise, band 10Hz 290Hz
level 0.001
1213700049  Jun22,18-10:54:09 UTC  (Jun22,18-12:54:09 CEST) -> unlock

level 0.001
1213711259  Jun22,18-14:00:59 UTC  (Jun22,18-16:00:59 CEST) -> unlock

0.01 (75Hz-125Hz)
1213712415  Jun22,18-14:20:15 UTC  (Jun22,18-16:20:15 CEST)

0.003
1213712643  Jun22,18-14:24:03 UTC  (Jun22,18-16:24:03 CEST)

0.001
1213712767  Jun22,18-14:26:07 UTC  (Jun22,18-16:26:07 CEST)

0.001 (95Hz-105Hz)
1213712878  Jun22,18-14:27:58 UTC  (Jun22,18-16:27:58 CEST)

0.005
1213712979  Jun22,18-14:29:39 UTC  (Jun22,18-16:29:39 CEST)

end
1213713165  Jun22,18-14:32:45 UTC  (Jun22,18-16:32:45 CEST)


Images attached to this report
Comments to this report:
hardwick, michimura - 15:18 Monday 25 June 2018 (41967) Print this report

We've looked at the times during shaker injections. We suspect that 101 Hz is not caused by the RFC minilink or by some structure on the suspended bench, but perhaps by some structure attached to the chamber wall inside (is there some lip where the minilink meets the wall that could have its own resonance?).

  • 101 Hz is not a resonance of the RFC minilink. We see no resonant peak in the minilink accelerometer. While there is coherence around 101 Hz between RFC Err and accelerometer, there is less coherence right at the 101 Hz peak seen in RFC Err.
  • 101 Hz is not a resonance of some structure on the bench. Noise in Sc_MC_RFC_Err_Post scales as 1/2 the RFC minilink motion (IB_BD_ACC) and the same as chamber wall motion (IB_ACC_X).  Unless there is a mechanical short between the chamber wall and the suspended bench, motion of some bench structure (optics mount, etc.) should be attentuated relative to chamber wall motion.
  • Additionally, this doesn't look like two structures moving/modulating scattered light; the motion of the chamber wall/minilink is large (10-4 m/s2) compared to wavelength, so we would expect broad noise peak, not the narrow line we see in RFC Err/DARM.

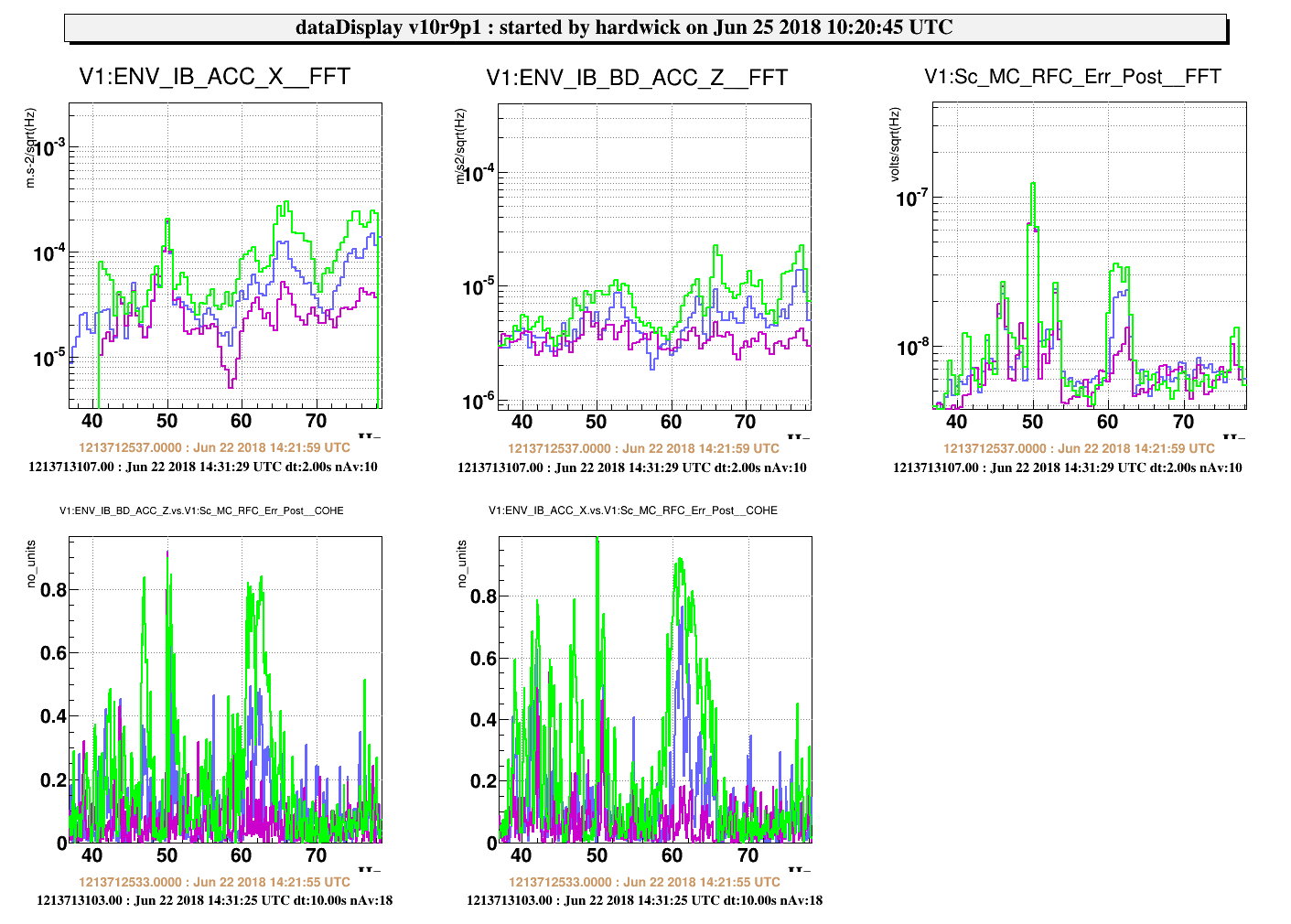

I attach spectrum during no injections and two different shaker injections, showing the accelerometers and error signals mentioned in original post. In the plots: purple is no injection, green is 75-125 Hz shaker injection, and blue is 95-105 Hz shaker injection.

Images attached to this comment
hardwick - 18:27 Monday 25 June 2018 (41979) Print this report


I noticed that ~60 Hz peaks were also excited in RFC Err during these IB tower shaking tests even when we were only driving close to 100 Hz (blue line). As Bas has noted, these peaks are some of the worst for DARM.


Images attached to this comment
genin - 23:05 Monday 25 June 2018 (41987) Print this report

In that confirguration, I think you were locked in recombined but not CARM to MC.

In the morning, we mostly worked in the states CARM to MC and LOCKED SSFS.

It would have been interesting to do it also in these 2 ITF states.

By the way, looking at the data it seems we can find coherence with the RFC error signal (mostly with accelerometers located north side of IB tower).

Even the SPRB one is coherent with the RFC error signal in several regions.

fiori - 8:55 Friday 06 July 2018 (42080) Print this report

Two additional observations:

when shaking the IB tower tank several peaks excite in the RFC signal (Figure 1), the 62Hz was already noticed by Terra.  Among them the only one that is coherent with IB tower tank accelerometer also in quiet condition is the 101.Hz.

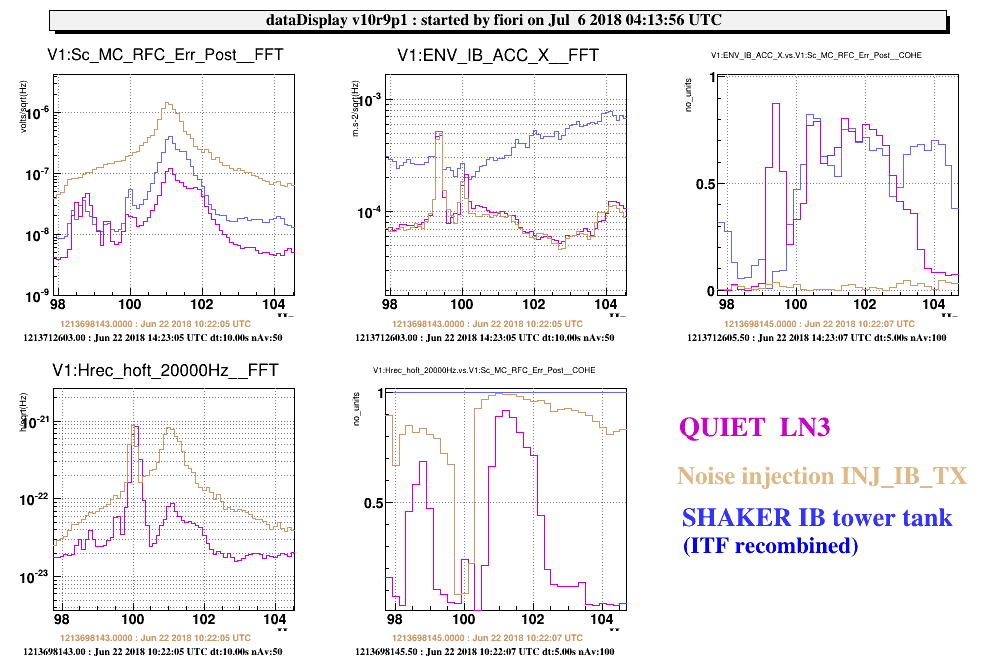

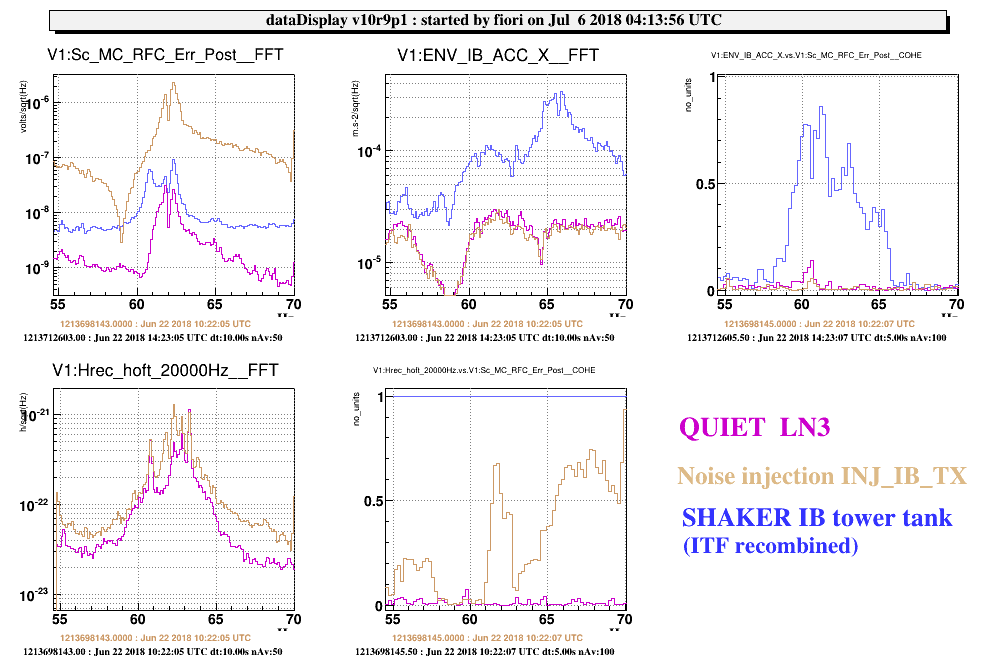

the shape of these 101Hz (Figure 2) and 62Hz (Figure 3) peaks match very well the shape of the peaks that got excited when Maddalena injected noise on IB angular controls ( 41956): see Figures 2 and 3. These peaks should be mechanical modes of SIB1 last stage suspension (quoting Paolo)  (broadband noise injected on SIB1 coils should definitely prove it). Figure 2 also shows that also the shape of 101Hz peak in Hrec maches. Figure 3 shows that instead the structure in Hrec around 62Hz was something else.

Images attached to this comment
