Detector Characterisation (Broadband noise)mwas - 13:56 Friday 24 November 2017 (40147)
Print this reportFlat noise in the bucket is increasingThe noise increased in the bucket (~150Hz) after the SDB1/SPRB intervention (or in the the two days preceeding it when the 1/f^4 noise started, hard to say). 39979.
This trend has continued more recently with the power increase.

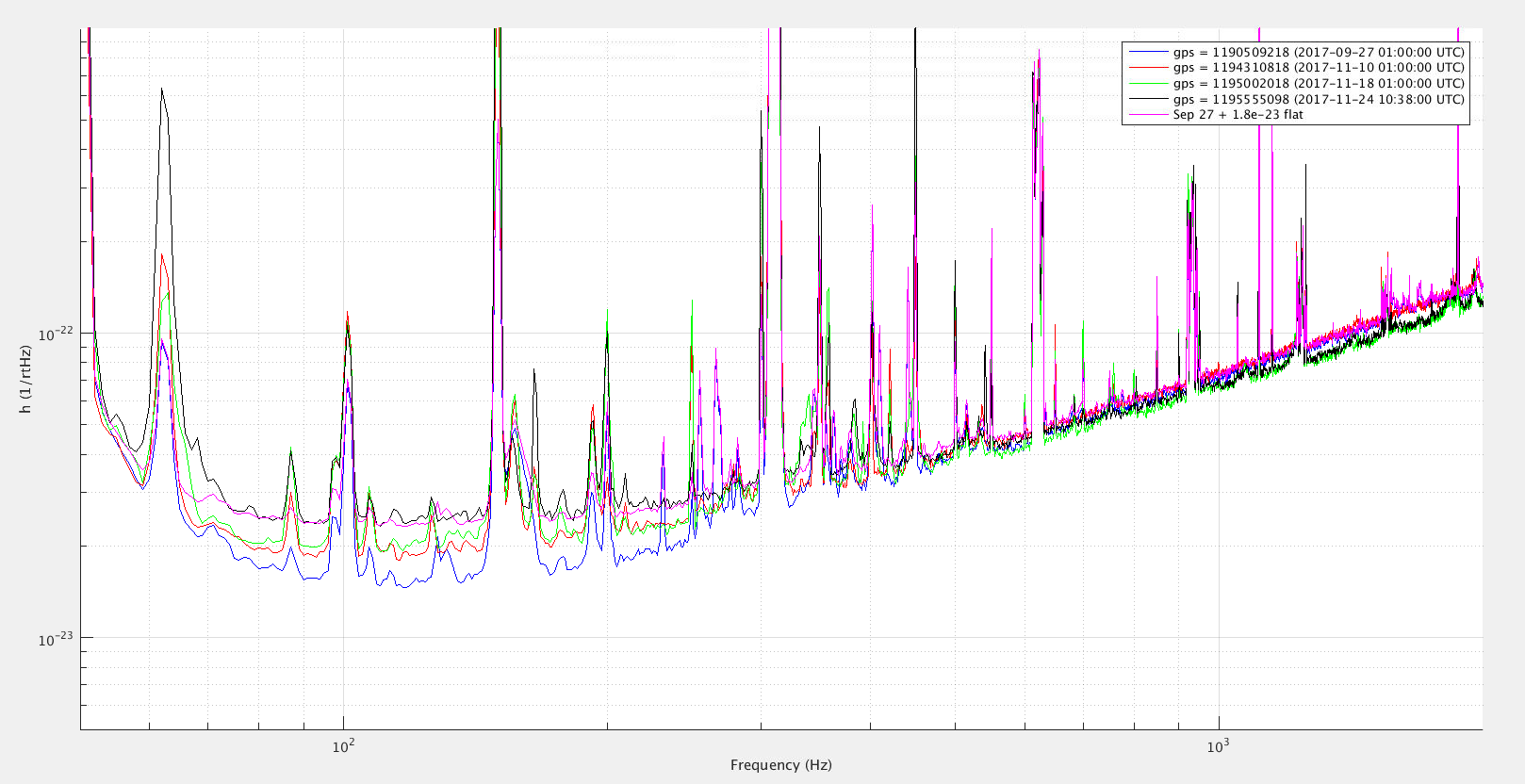

Figure 1 shows the spectrum:
* blue - back in September when the range was ~30Mpc
* red - after the SDB1/SPRB intervention and the 1/f^4 noise (mirror actuator saturation) fixed
* green - with input power increased from 14W to 20W, not much change compared to red
* black - with input power of 26W, flat noise much higher
* magenta - same data as blue (Sep 27) + a flat noise at 1.9e-23m, matches very well the black curve
So the mystery noise is still very consistent with flat noise and might be increasing with input power.
