AdV-COM (AdV commissioning (1st part) )
masserot - 17:07 Wednesday 14 February 2024 (63274) Print this report
Noisy CEB IPS and UPS

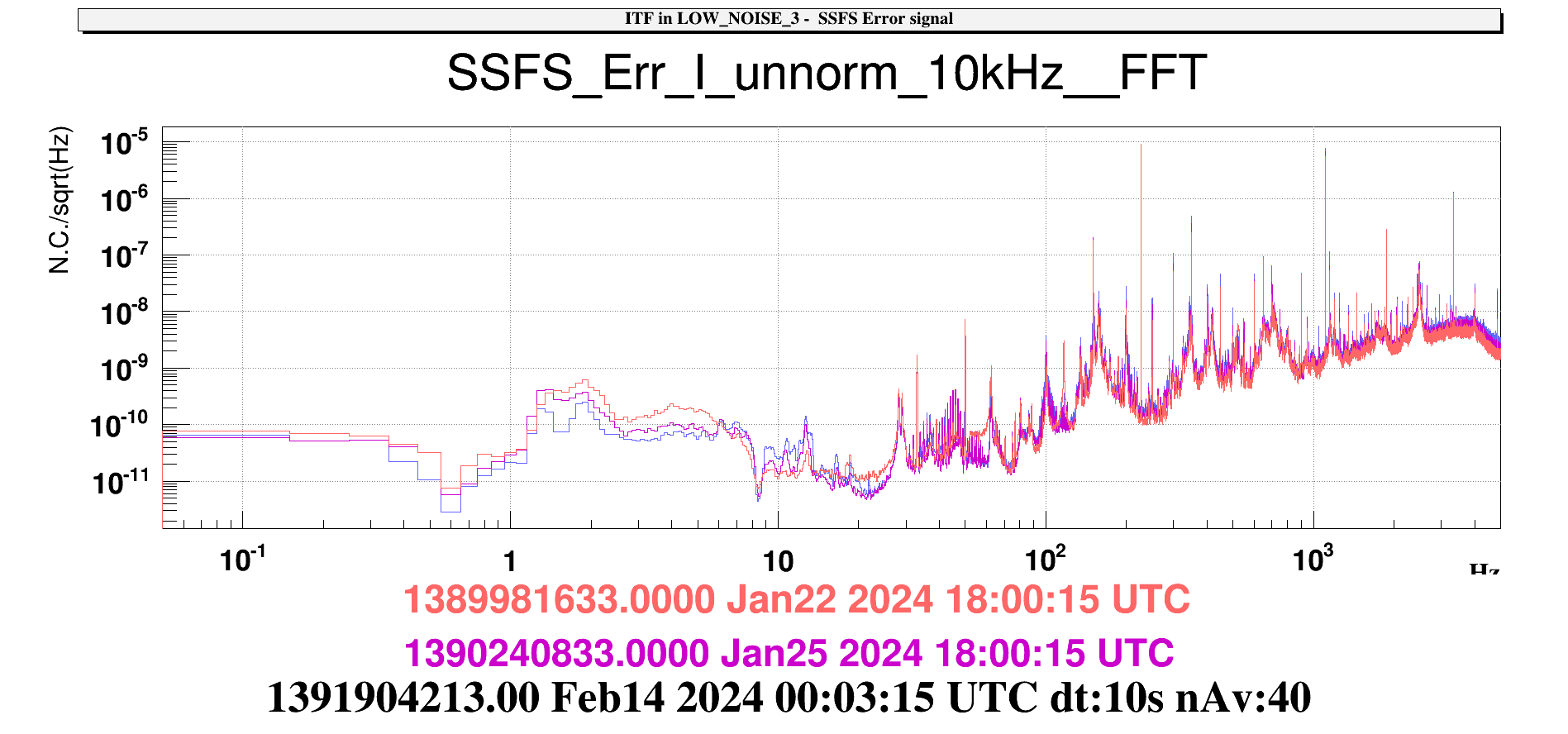

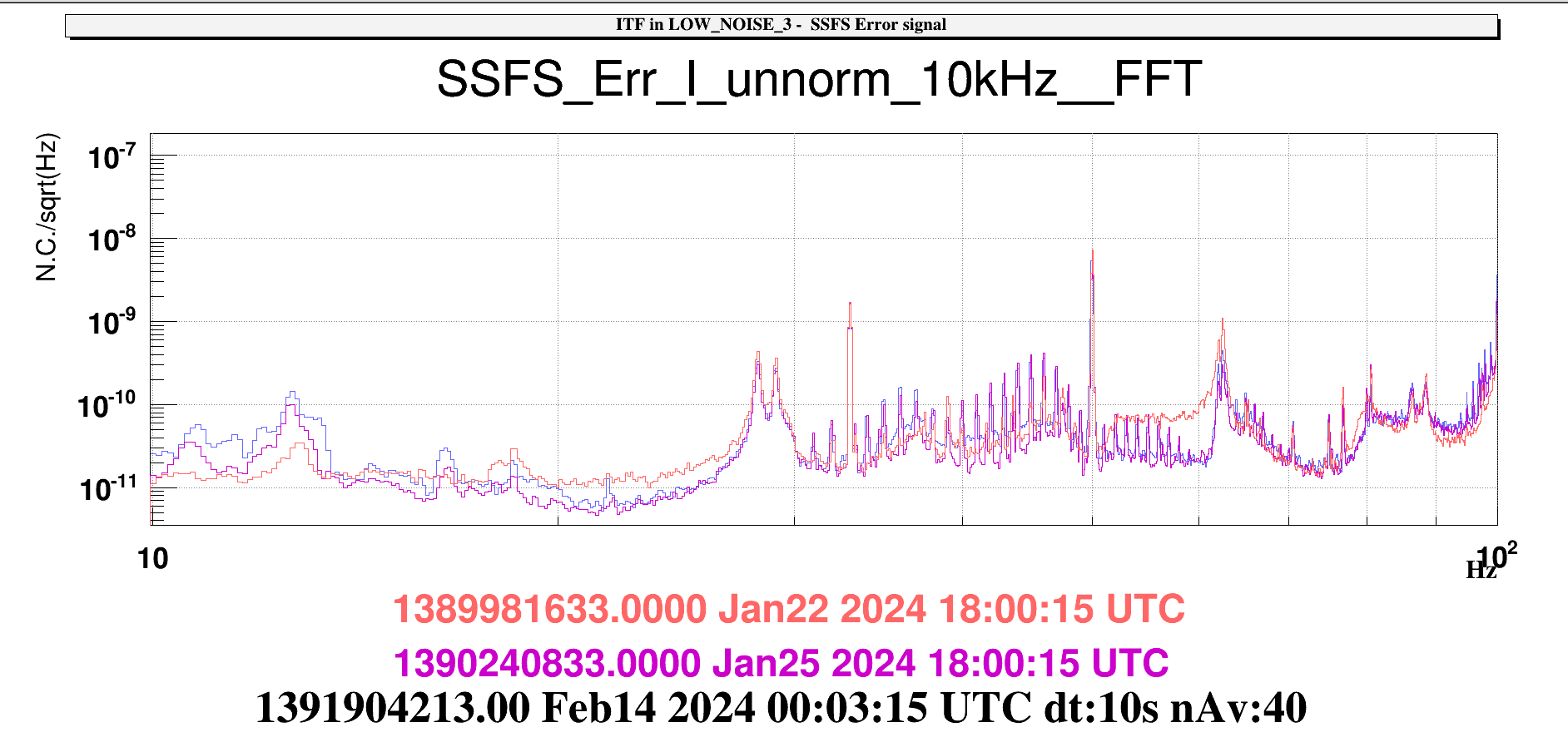

Looking at the SSFS_Err_I signal I found that there is some 1Hz combs  between 30-50Hz, around 100Hz and 200Hz

  • these 1Hz combs were not present  the last lock at LN3  related  to 2024-01-22-17h57-UTC (red)
  • but they are present on the SSFS_Err_I channels at the first relock at LN3 the 2024-01-25-17h57-UTC (purple)
  • and are still presents : ITF at LN3 the 2024-02-14-00h00-UTC (blue)

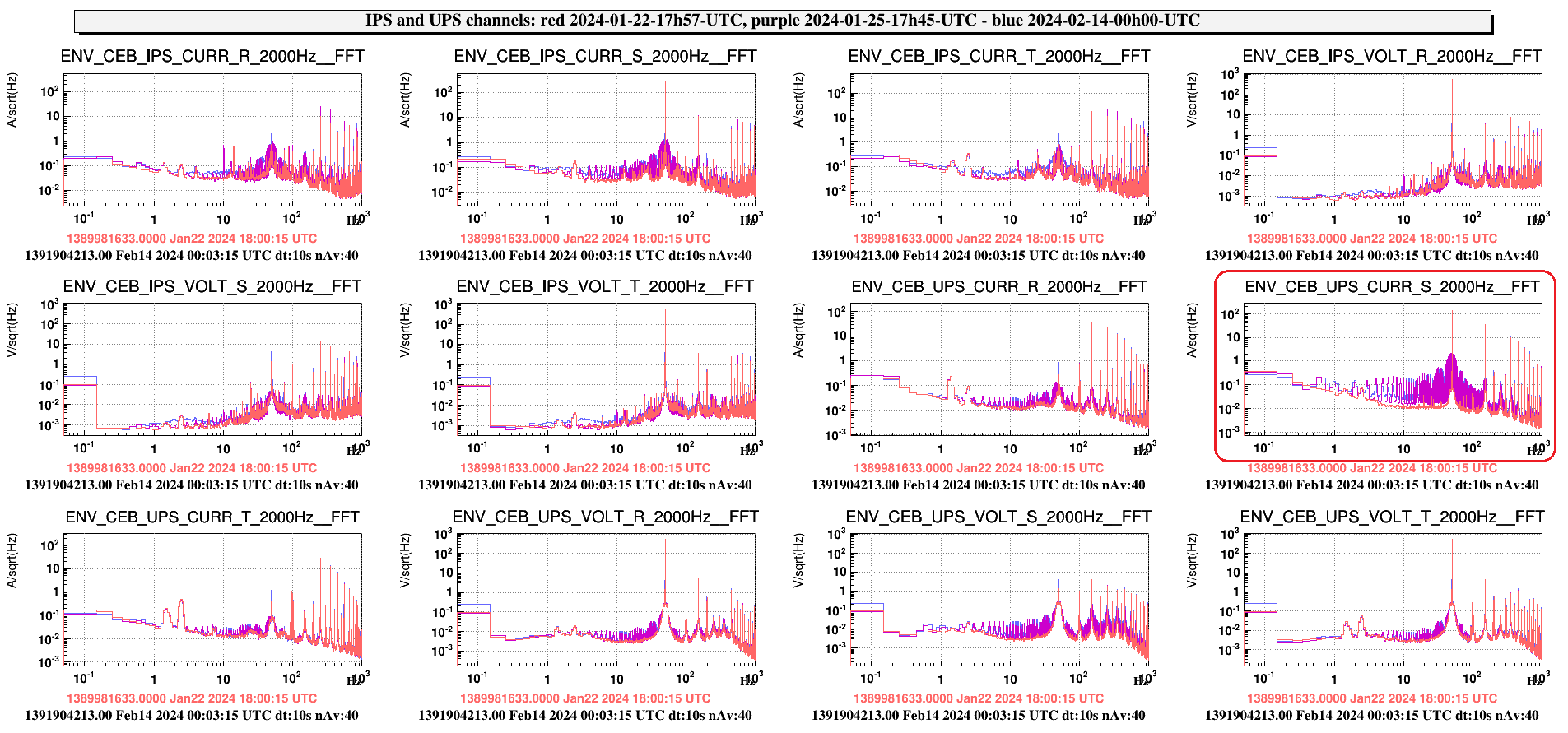

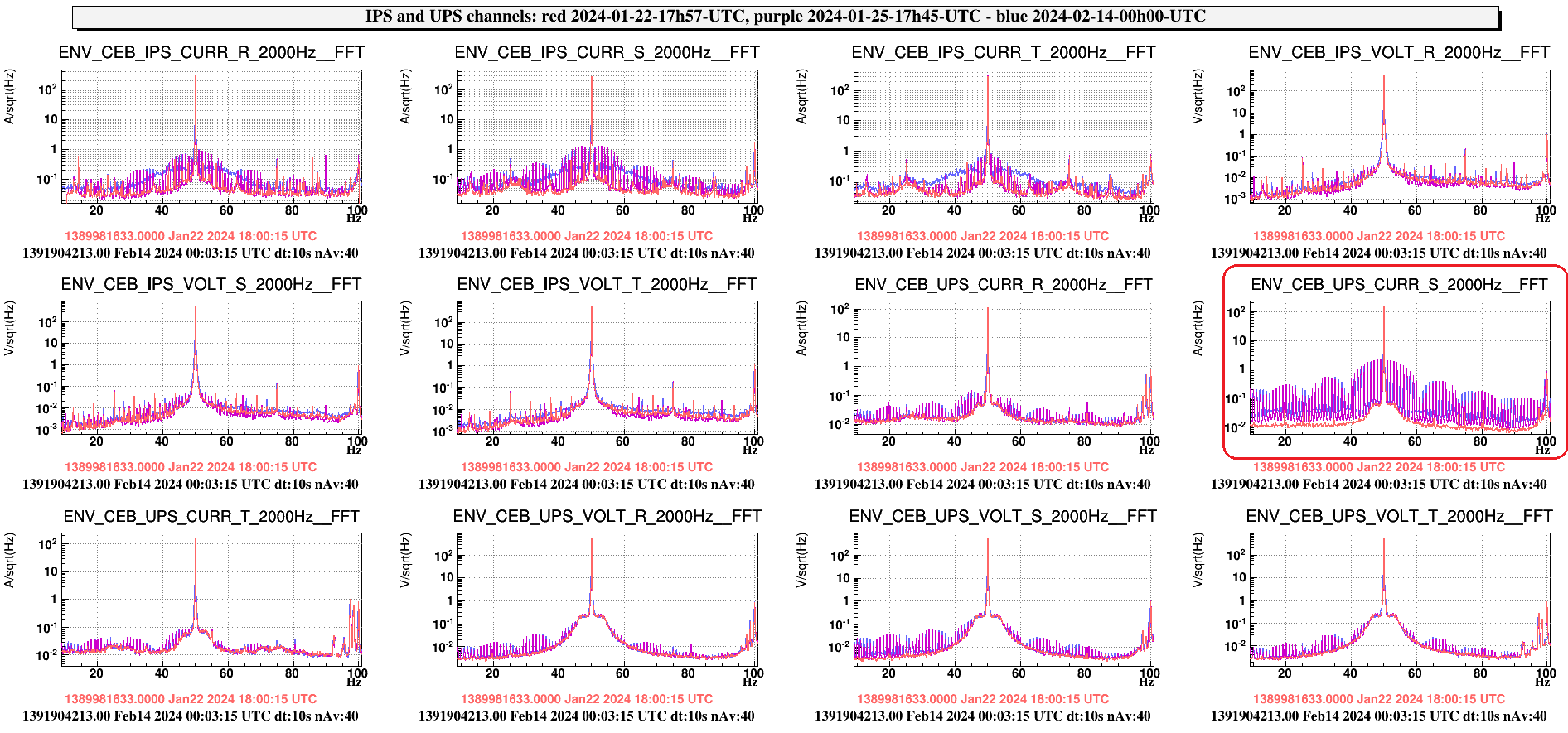

Looking at the IPS and UPS CEB channels, zoom between 10Hz and 100Hz, one can see that there are a lot of 1Hz combs on all the channels: current and voltage on the IPS and on the UPS channels.

Thanks the spectromoni plots, where the  ENV_CEB_UPS_VOLT_S is available,   one can find that



Images attached to this report
Comments to this report:
Paoletti - 17:05 Wednesday 14 February 2024 (63277) Print this report
masserot - 15:33 Thursday 15 February 2024 (63289) Print this report

The readout of the IPS current and voltage on the one related to the UPS are done by 2 ADC7674 hosted in the same VME  crate located in the DAQ room .

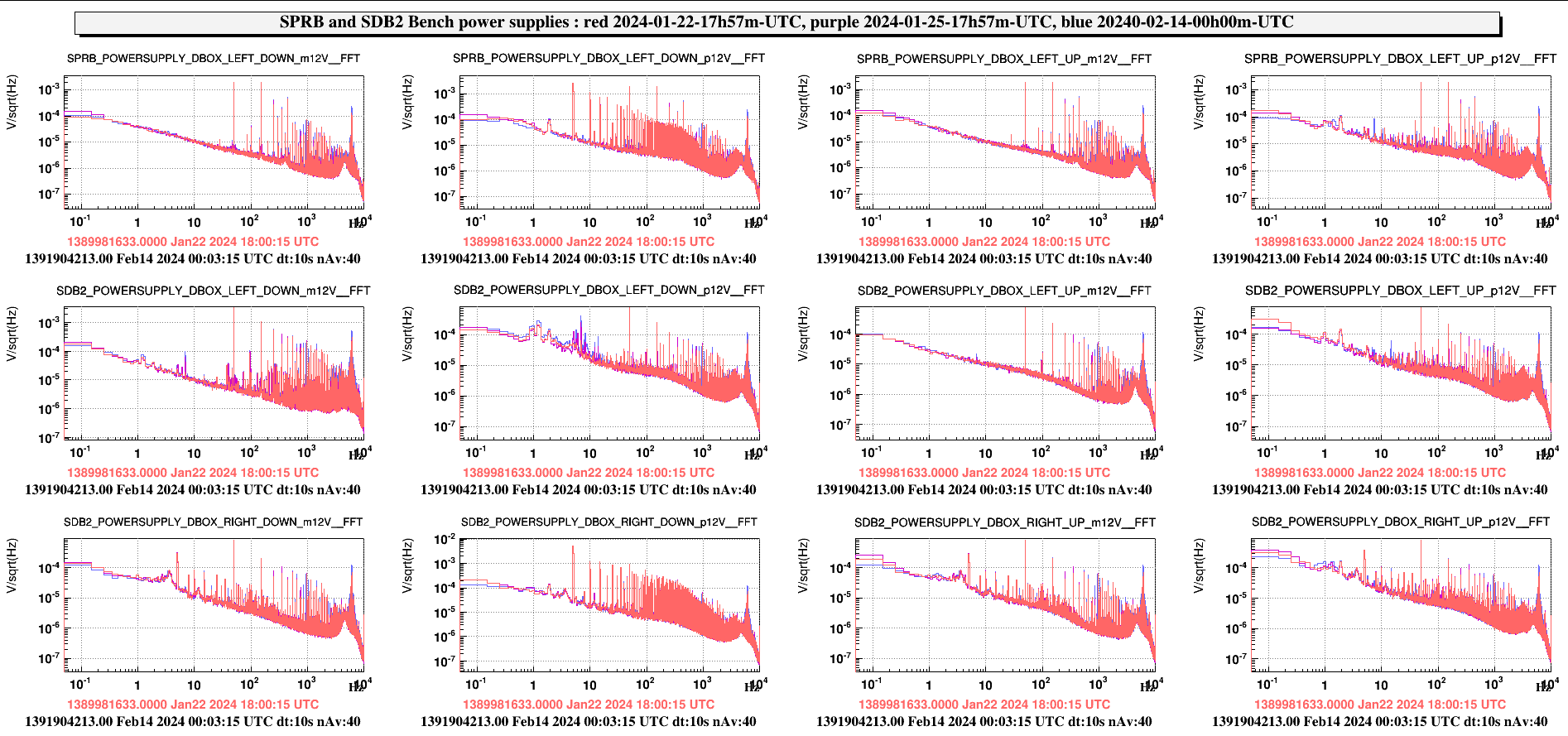

The attached plots shows the SPRB and SDB2 power supplies monitoring channels, located in the DAQ room for the SPRB one and  in the DET EERoom for the SDB2 one .

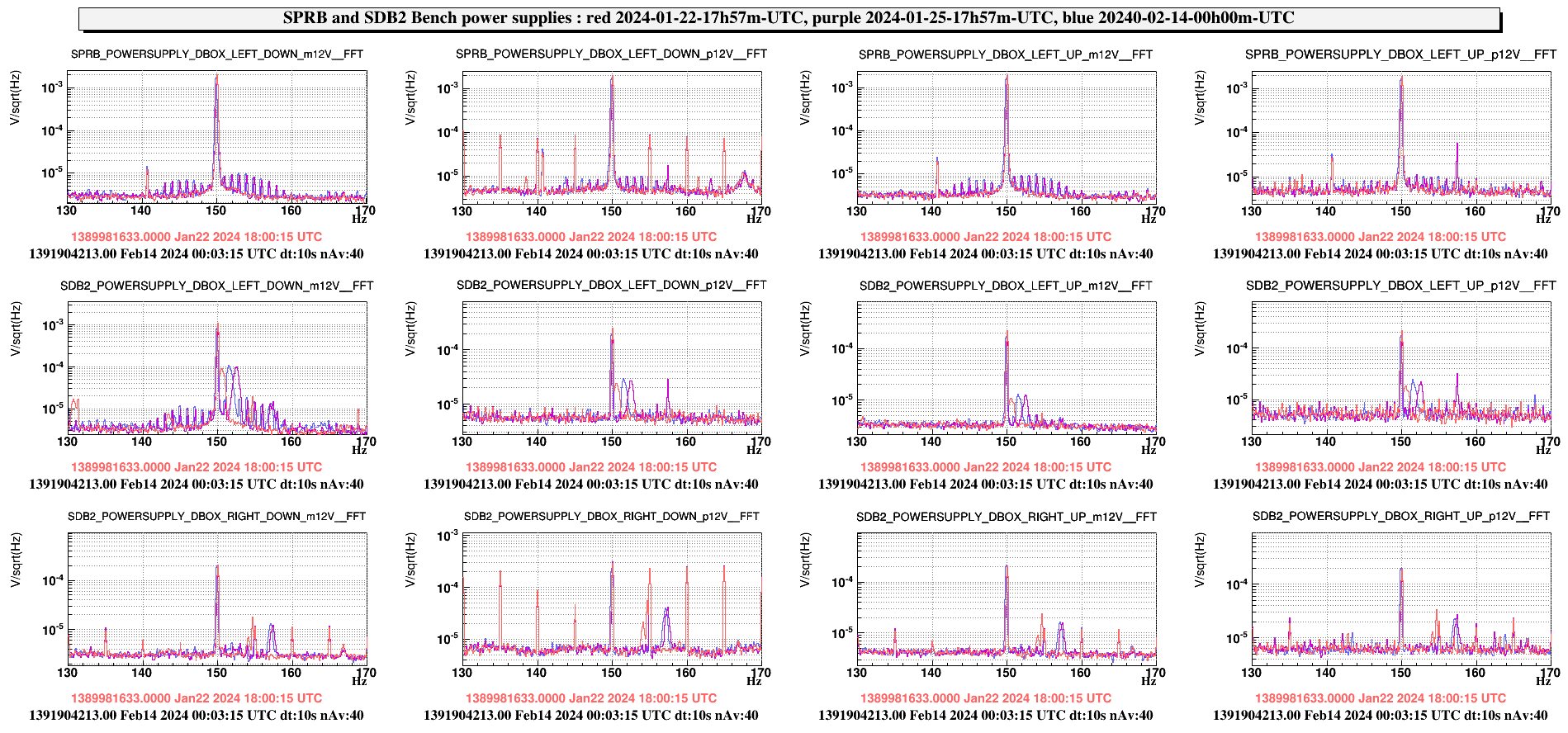

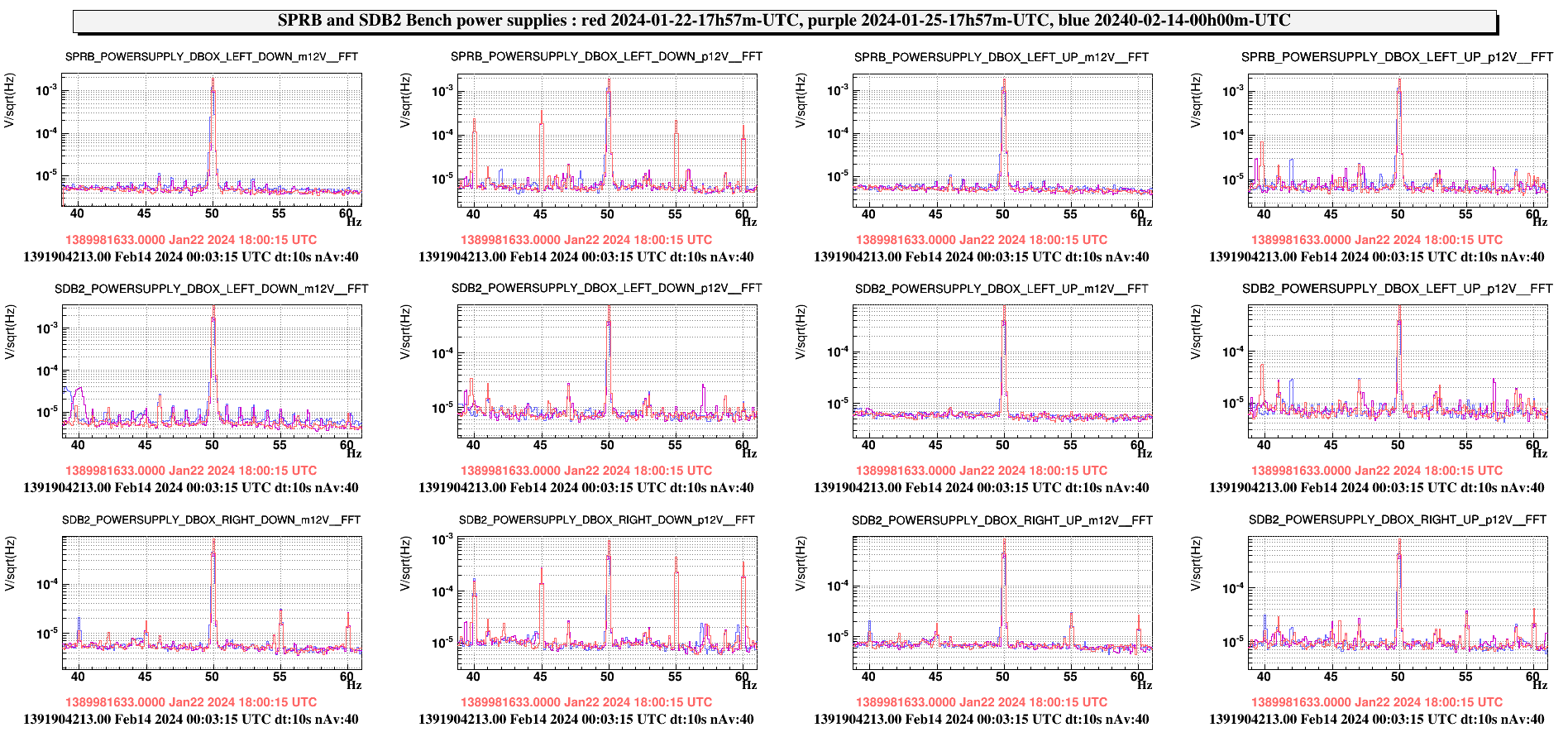

With the zoom around 50Hz and the one around 150Hz, one can see the same 1Hz combs as the ones observed on the IPC and UPS channels.

This confirms that the 1Hz combs on the IPC and UPS channels are real ones and not an issue of the readout .

Images attached to this comment
Paoletti - 18:49 Tuesday 20 February 2024 (63339) Print this report
Images attached to this comment
