AdV-TCS (Wavefront sensing)
nardecchia - 10:56 Tuesday 17 January 2023 (58441) Print this report
Comment to PR CHRoCC operation investigation with HWS INJ (58436)

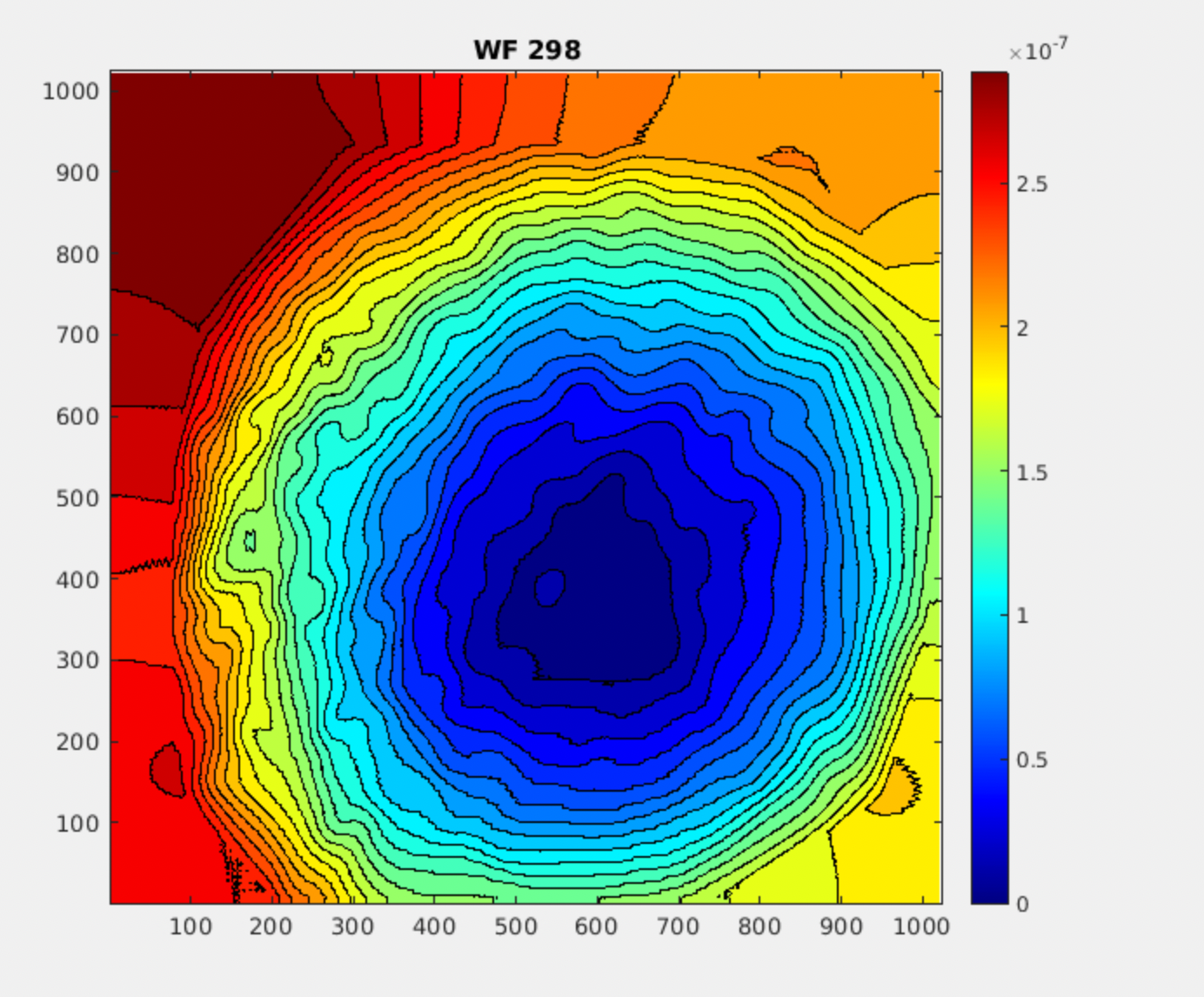

The data acquired during the night have been analyzed. An example of the wavefront map is shown in fig.1.

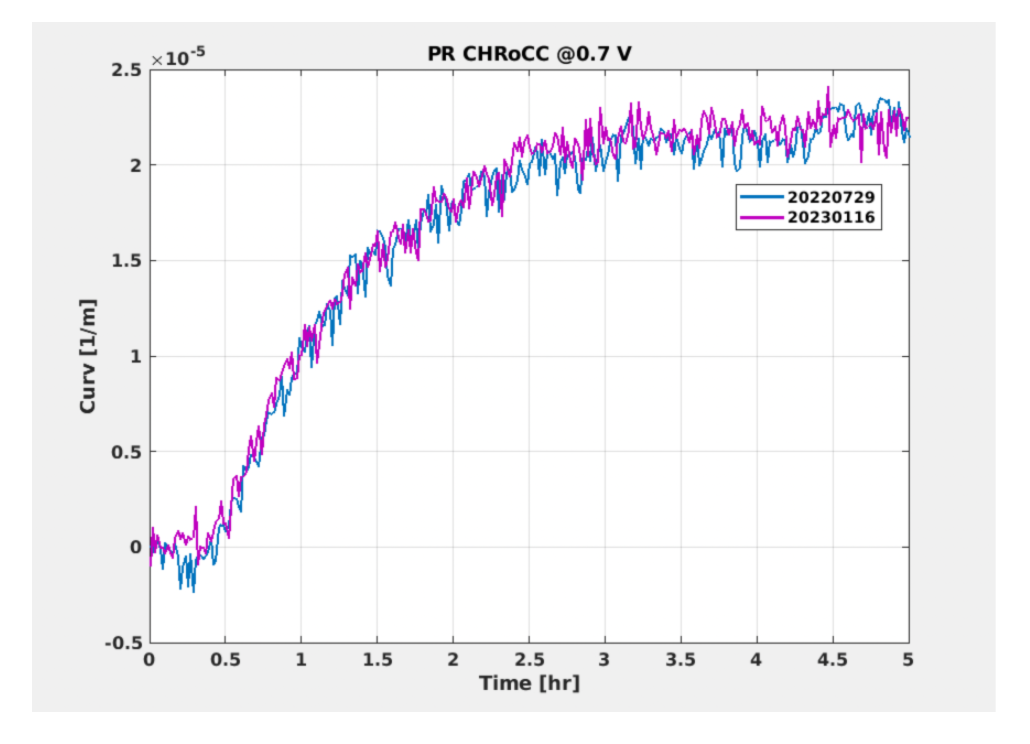

The measured curvature is in agreement with the one observed on 29 Jul 2022 reported in 56588 (see fig.2).

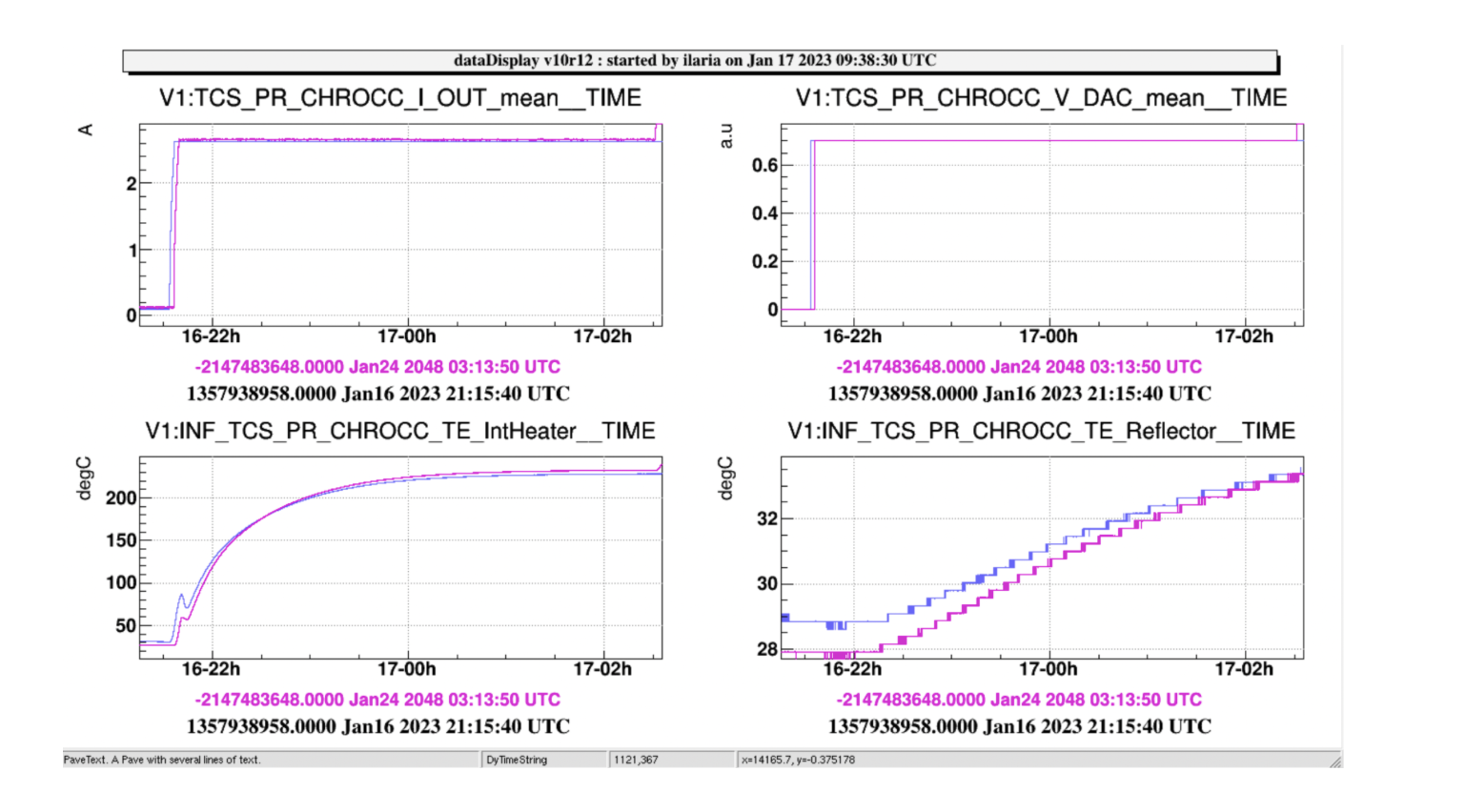

The temperature behaviours (heater and reflector) during the two different measurements are compared in fig. 3.



Images attached to this comment
