AdV-TCS (Ring Heater)
capocasa, casanueva, chiummo, gouaty, menzione, nardecchia, pinto, trozzo - 23:26 Friday 13 May 2022 (55846) Print this report
PR RH switching ON

In order to take the reference before switching on the PR RH, Antonino performed the scan with the green laser from 14:59:10 to 15:08:18 UTC.

Then, we experienced some issues to lock the CITF related to the drift of SDB2 (fixed by Romain). Once the CITF locked, the PR RH has been switched on with the power of 5 W at 16.52 UTC. From the simulations we expect Delta RoC= -3.6 m (RoC=1477 m→ 1473.4 m). Concerning the thermal lensing we expect  2.34e-5 dioptres.

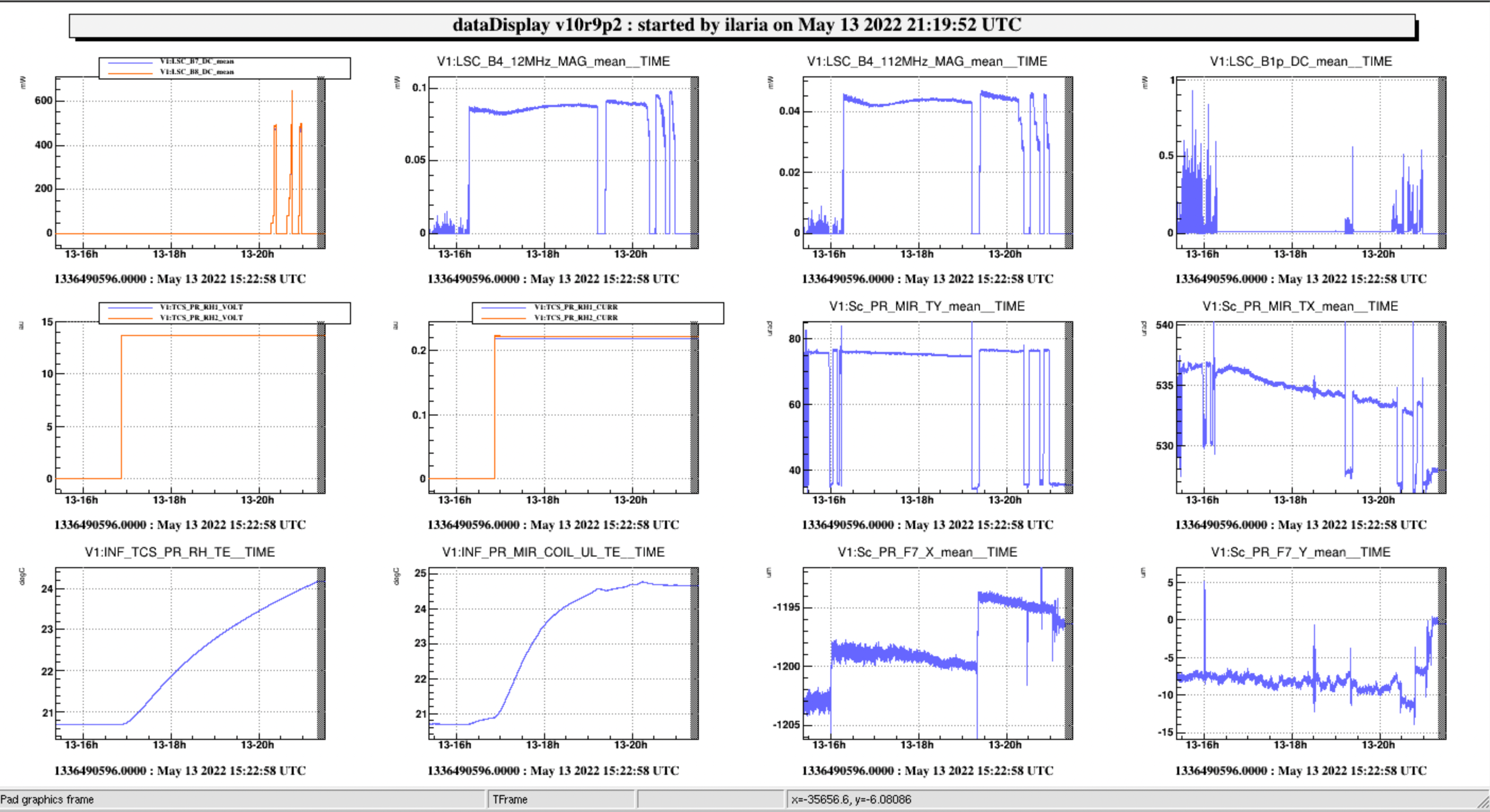

During the thermal transient, the ITF has been kept locked in CITF as already did in yesterday shift for the SR RH test (entry 55826) and, at around 20 UTC, ISC people started to try to lock the ITF at CARM null (see fig.1).

We tuned the phase of the 169MHz, which turned out to be the same as yesterday. We didn't have to tune the gains during the CARM offset reduction by much. We tried to reach CARM offset 0 once but we unlocked. We are unsure of the phase of DIFFp so WE LEFT THE LINES THAT CLOSE DIFFP IN DRIFT CONTROL IN CARM STEP3 COMMENTED for the time being (2322-2323). The recovery will continue tomorrow.

In the end a new scan with the green laser has been performed by Antonino between 21.12 UTC and 21.21 UTC.

We left the cavities locked on the IR and PR RH on.

Images attached to this report
Comments to this report:
casanueva, capocasa, chiummo, gouaty, menzione, nardecchia, pinto, trozzo - 23:40 Friday 13 May 2022 (55847) Print this report

The two scans of the arms offer a first rough evaluation of the mismatch before switching on the PR RH and when the temperature was close to the steady state.

Plot 1 is an overview of the first scan (RH OFF): mismatch roughly 1.5% North Arm and 1% West Arm

Plot 2 is the second scan of the arms (RH ON, 21:12 UTC): mismatch roughly 3% North Arm and 1.8% West Arm

The compensation via meniscus lens on SIB1 has not been performed since it is preferable to wait for the transient to be fully completed.

Images attached to this comment
