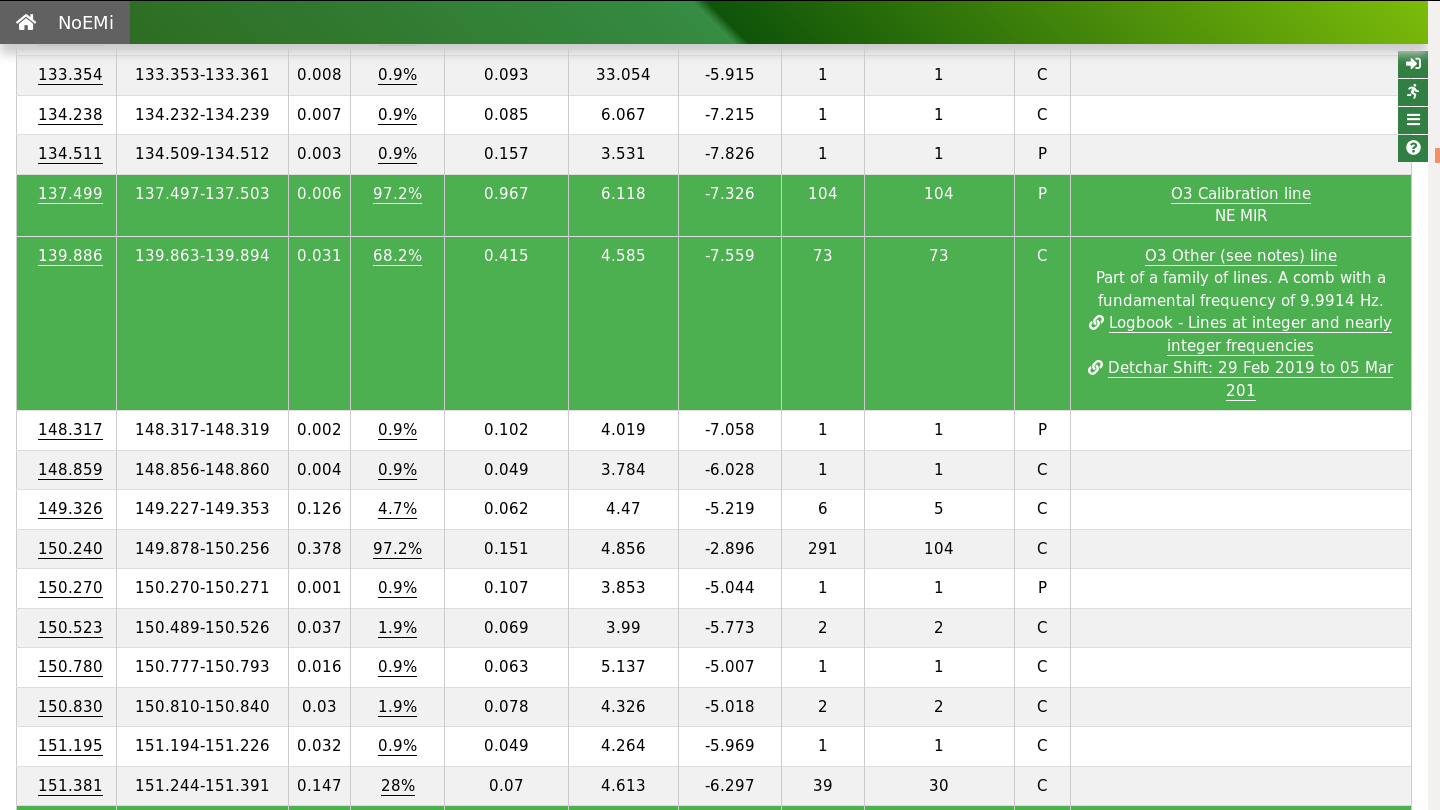

As of yesterday, the NoEMi web user interface reads lines directly from the Lines Database and integrates the information into its own, constantly updating list of lines. The results can be viewed in the image on the right-hand side below or accessed via the Lines for the full dataset section of the WUI.

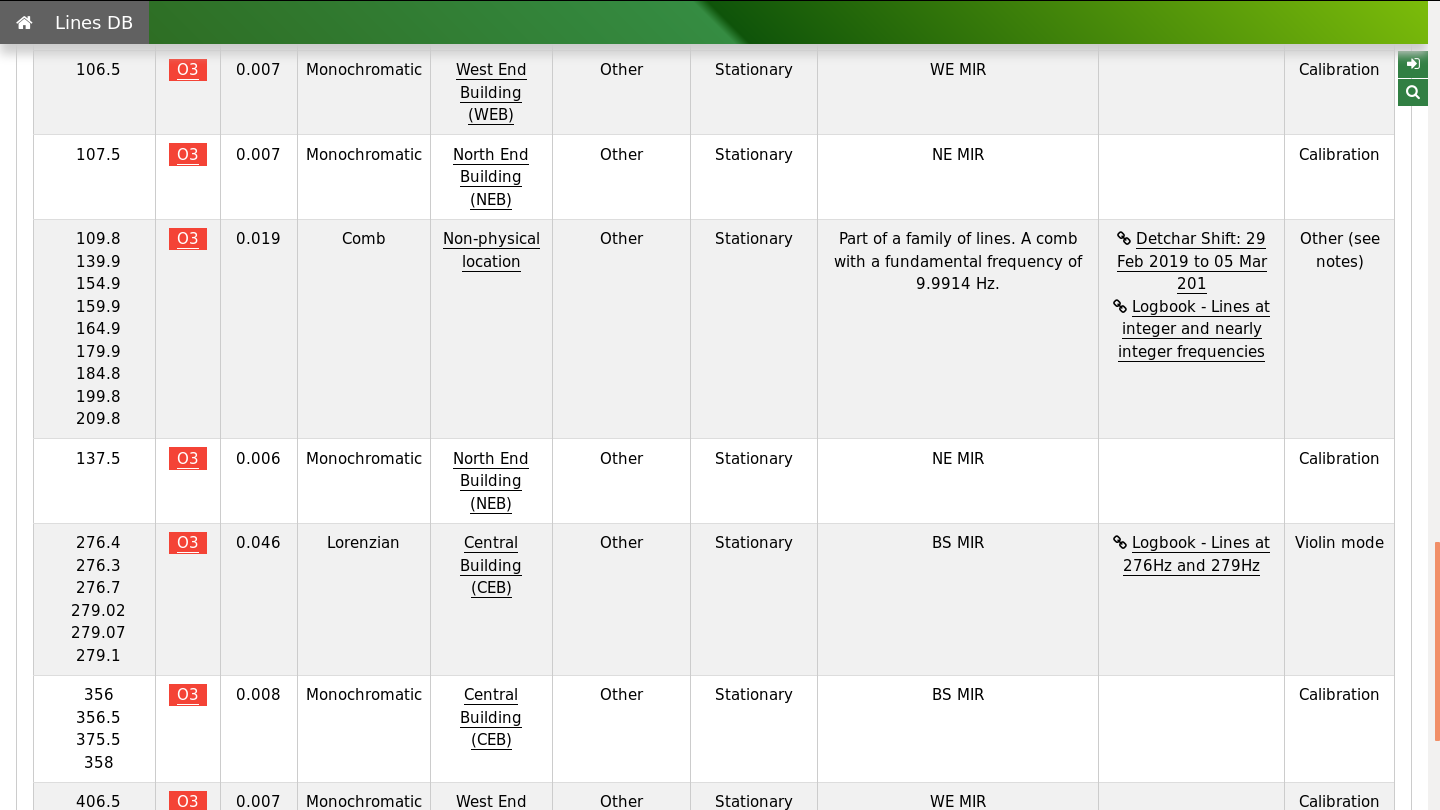

The Lines Database is gradually being populated with lines found so far during O3, while the functionality to push a line found by NoEMi directly into the Lines DB, along with the required additional metadata, has also been added. A screenshot is available in the image on the left below.

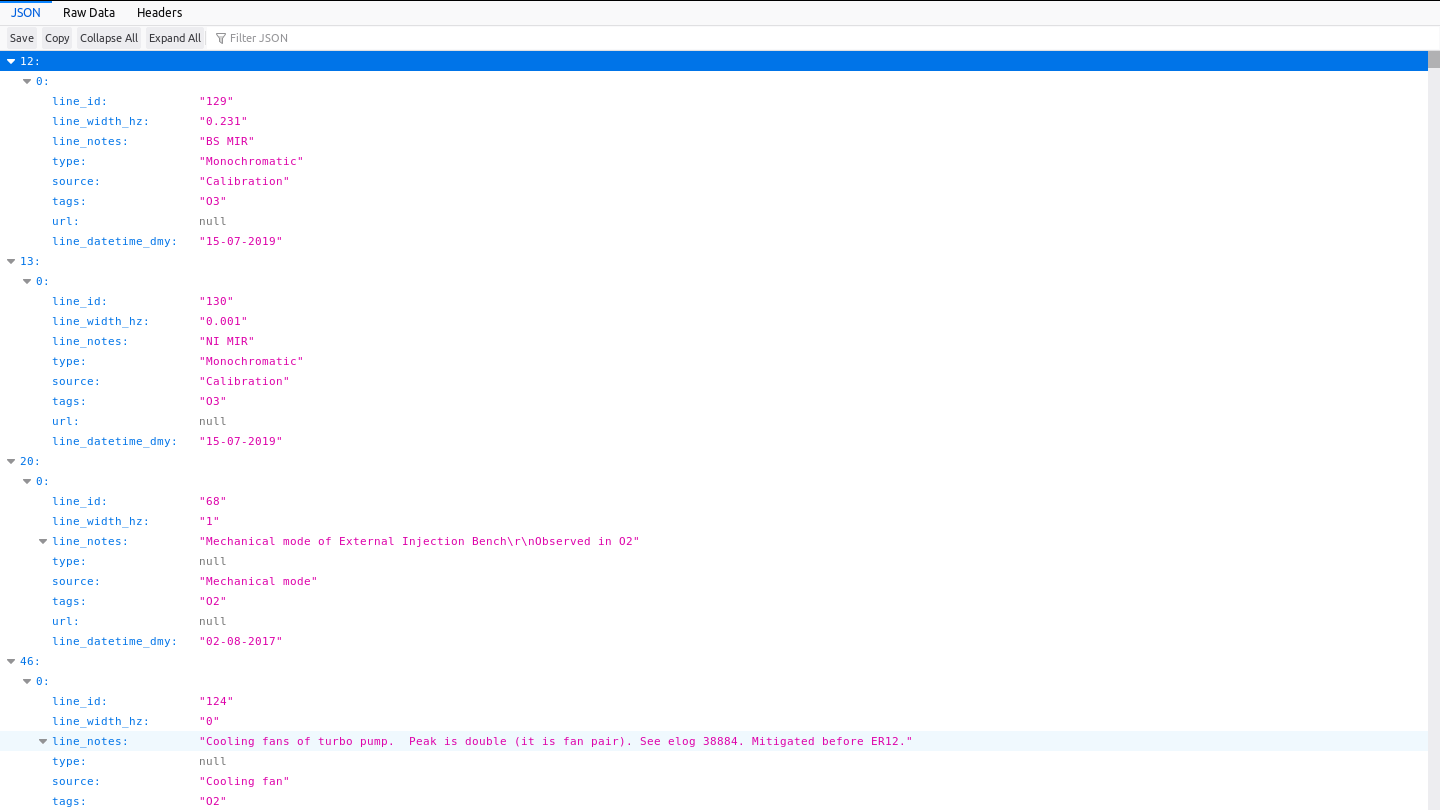

Furthermore, the RESTful API providing line information, which is used by NoEMi in the example given above, can also be used by other applications where it might be useful. The API will be developed further over time in order to serve additional use cases. It can be hooked onto here: http://apps.virgo-gw.eu/lines/api/lines and provides a JSON payload (see the centre image) containing a dictionary of currently-available lines, along with associated metadata.
