Length Sensing and Control (Full ITF locking)tarallo, evans - 22:26 Thursday 31 August 2006 (13242)

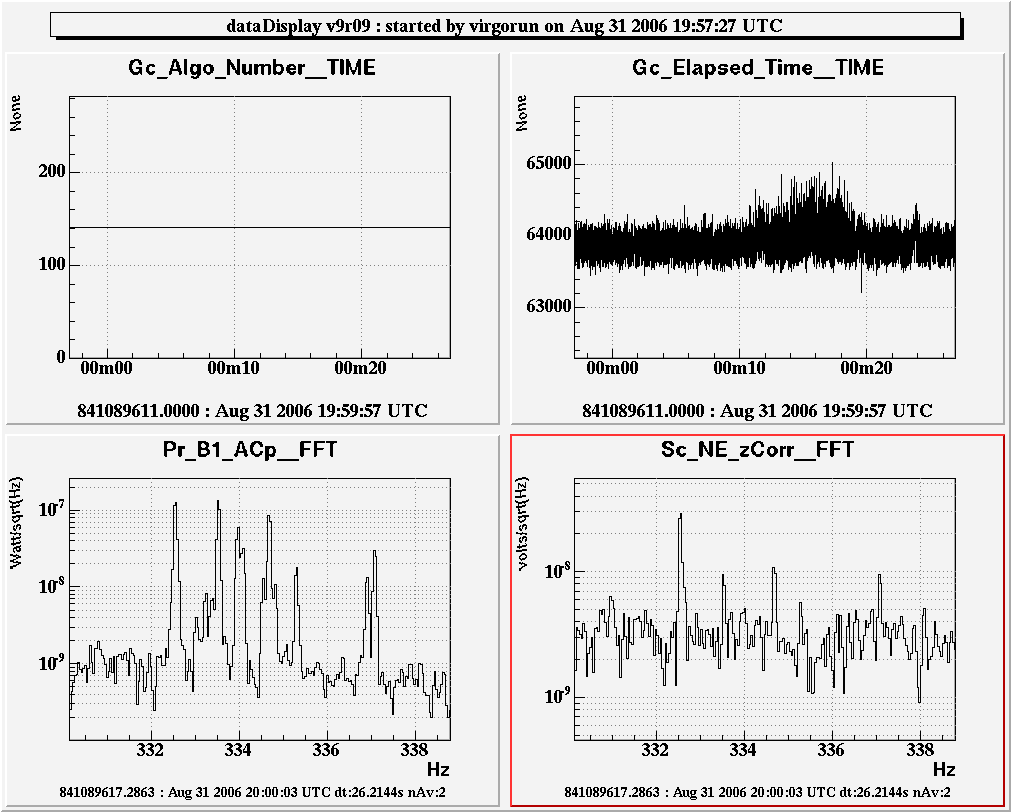

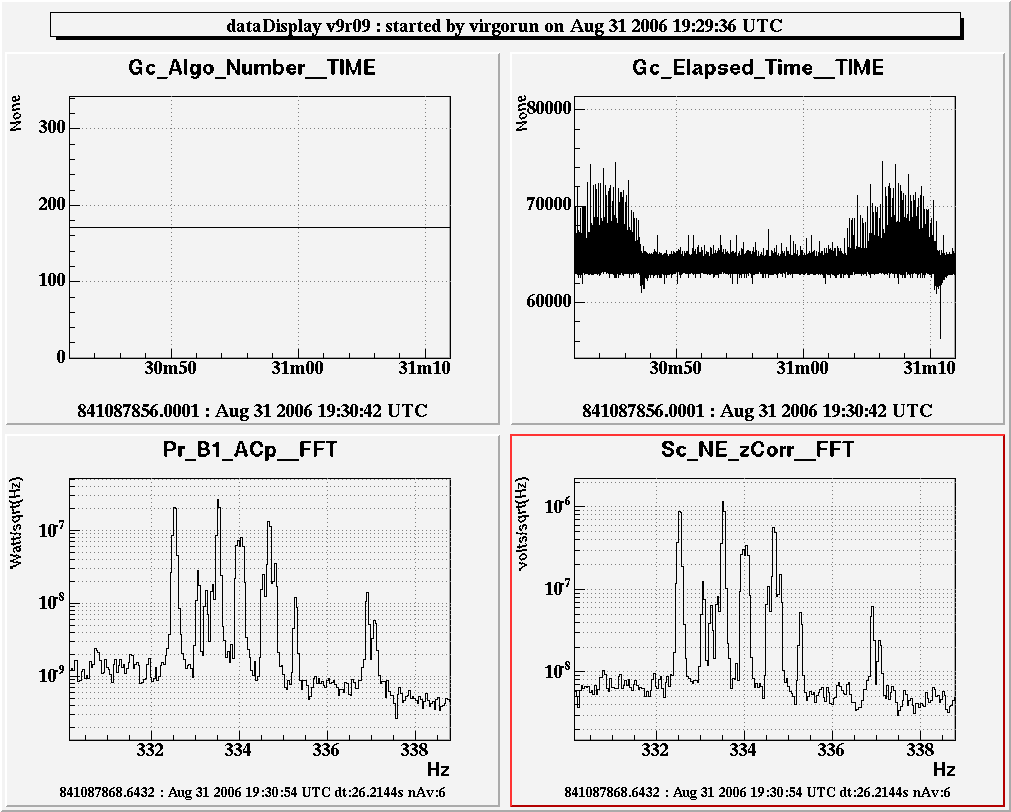

Print this reportTesting the new "Violin mode dumper" filterOnce the ITF was brought to SM we turned on the new Locking_Half_Boost_MICHNEW1 filtering algo we set up two days ago (about at GPS 841089408). Performances immediately after the activation are shown in the attached plots. In the second plot we can see no appreciable time change occurs when the 8th order filter is on. The expected damping is visible in Sc_NE_zCorr signal.
