Length Sensing and Control (Full ITF locking)
tarallo, evans - 0:11 Wednesday 30 August 2006 (13218) Print this report
New filter for DARM filtering

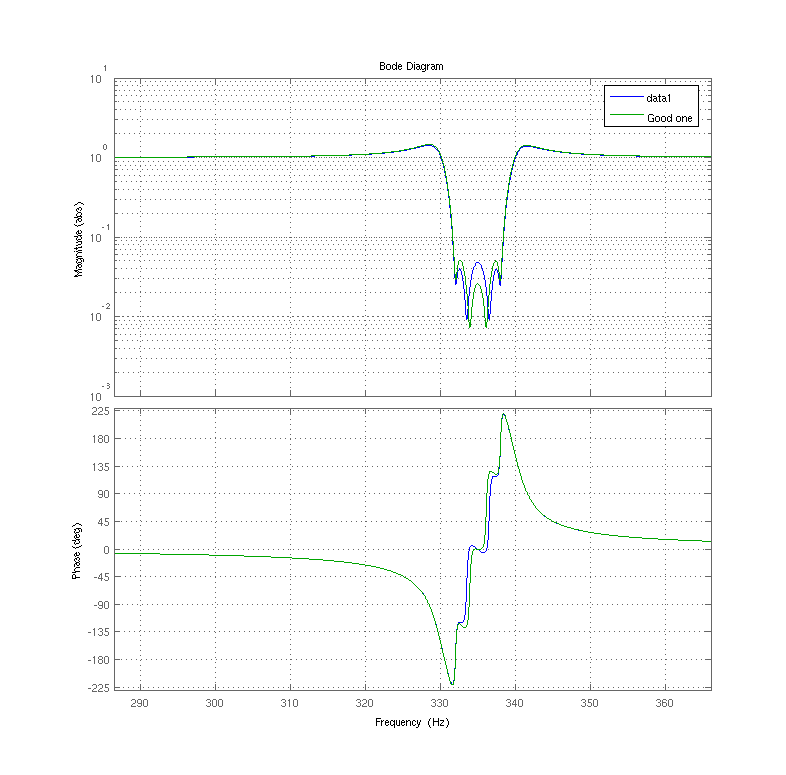

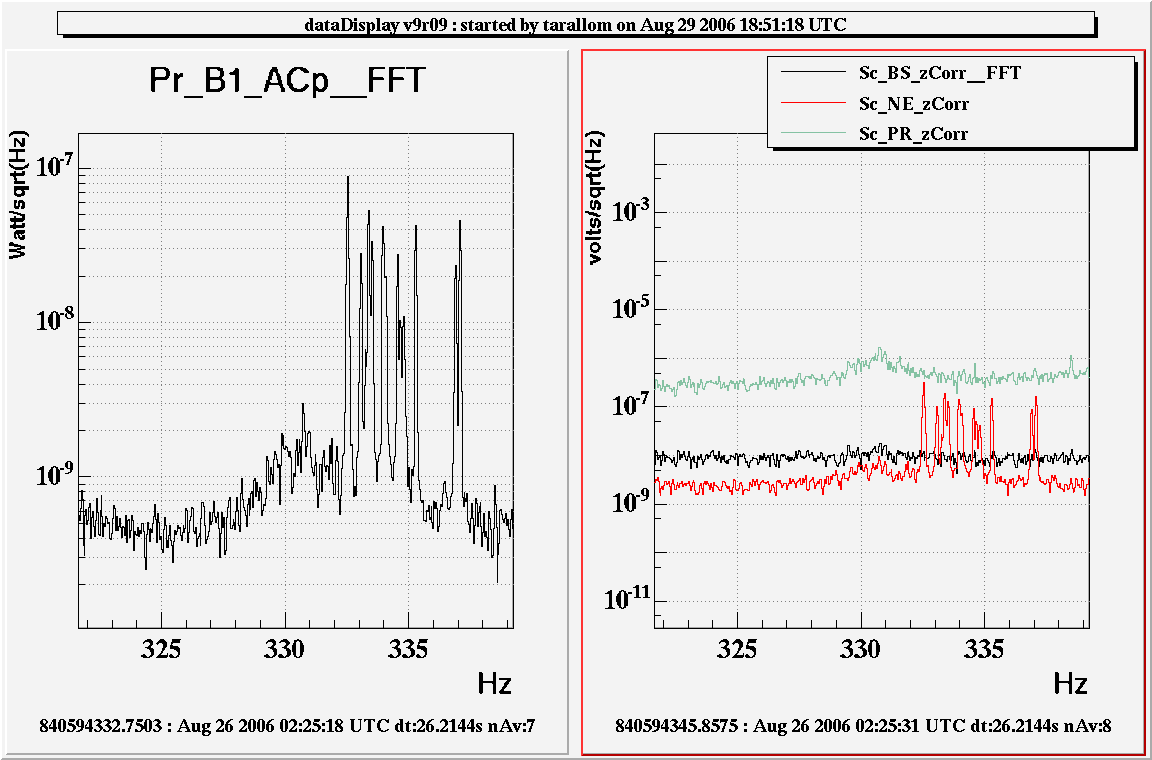

A new filter on the DARM filtering chain has been written: it is possible to find it in dBui as Locking_Half_Boost_MICHNEW1 version 1.4. We added 4 poles and 4 zeros to notch the excited violin modes (see the attached plots). We couldn‘t test it because the wind is too high, thus the ITF lock resulted difficult.
Images attached to this report
Comments to this report:
tarallom - 12:46 Wednesday 30 August 2006 (13223) Print this report
The correct Locking_Half_Boost_MICHNEW1 version is the # 1.6.
