Pitch and Yaw TF of the monolithic payload suspended in the facility at 1500 m West have been measured. The measurements have been performed in air but with the filtered air flux switched OFF.

Pitch TF has been measured under ty-closed loop while tx is performed at OL.
The excitation is band passed and excludes ty lowest mode.

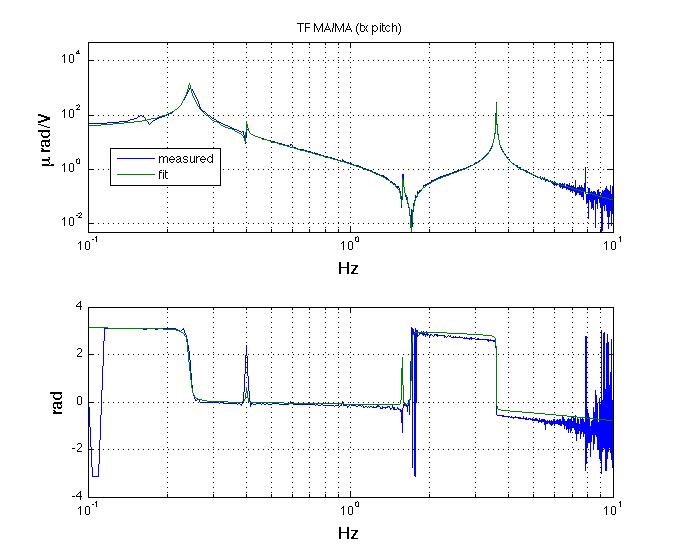

tx Ma/Ma DC=35 urad/V
---------
P 0.244,45
Z 0.399,200
P 0.402,200
Z 1.569,200
P 1.581,200
Z 1.703,200
P 3.595,500
P 10

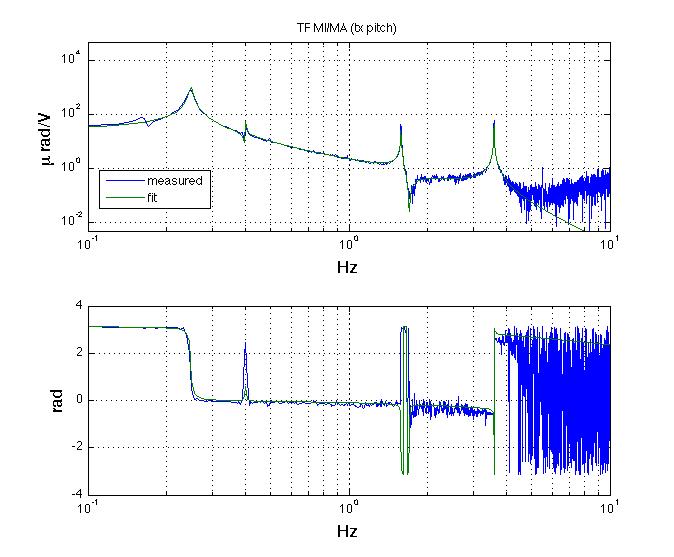

tx Mi/Ma
---------
P 0.248,45
Z 0.399,200
P 0.402,200
Z 1.703,200
P 1.581,200
P 3.595 400
P 10

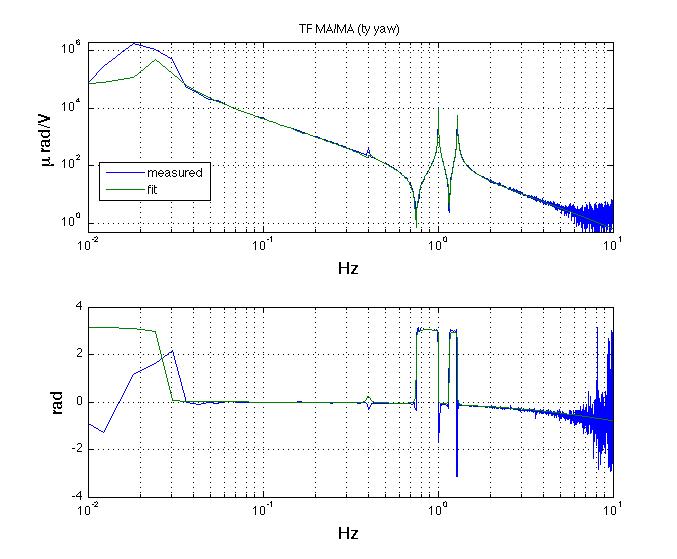

ty Ma/Ma DC=60000 urad/V
----------
P 0.026 ,45
Z 0.399,20
p 0.402,20
Z 0.7505,200
P 1.007,500
Z 1.16,200
P 1.294,300
P 10

ty Mi/Ma
----------
P 0.026,45
Z 0.399,20
P 0.402,20
Z 0.7505,200
P 1.007,500
P 1.294,300
P 10
