AdV-ISC (Commissioning up to first full interferometer lock)
casanueva, masserot - 10:55 Tuesday 11 March 2025 (66340) Print this report
PAY_Img

I have re-started both PAY_Img severs to add the NE/WE/NI/WI_Beam zones of the cameras, that look only to the beam radius. Now they are available on DataDisplay.

Comments to this report:
mantovani - 16:29 Tuesday 11 March 2025 (66346) Print this report

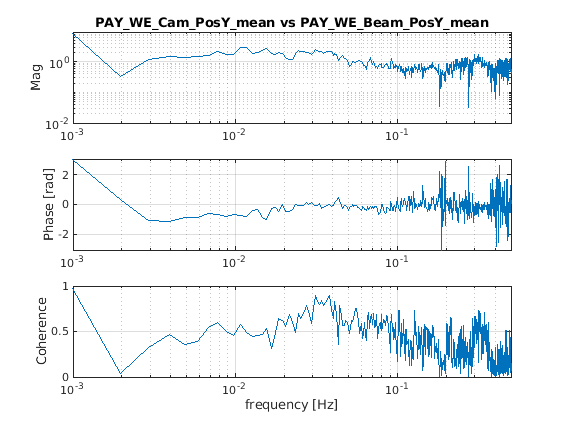

I ve analyzed the new data of the camera and in the Y direction there is an improvement of the SNR (thus of the sensing noise).

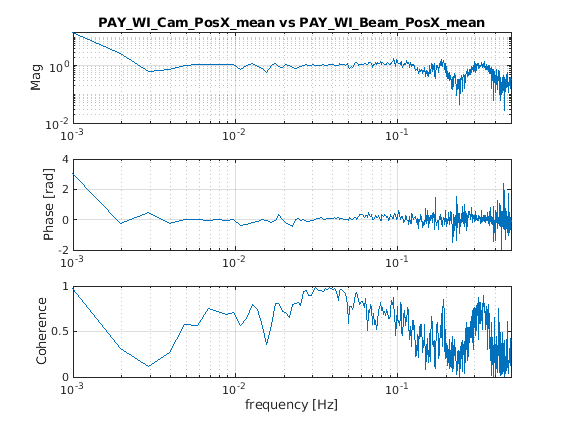

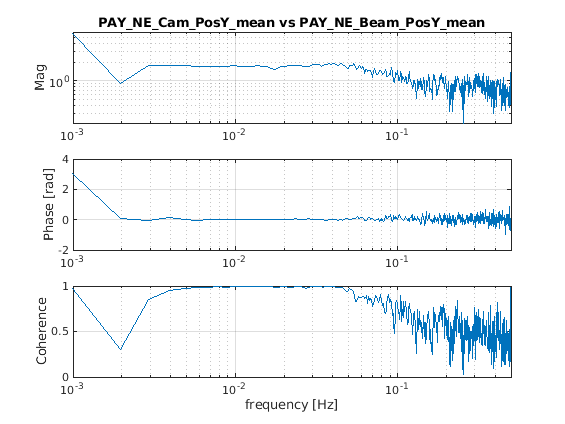

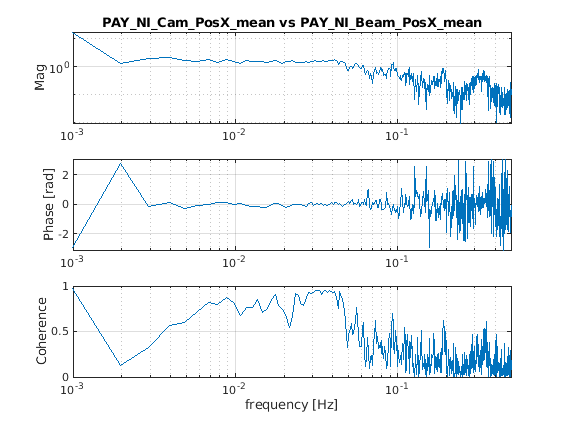

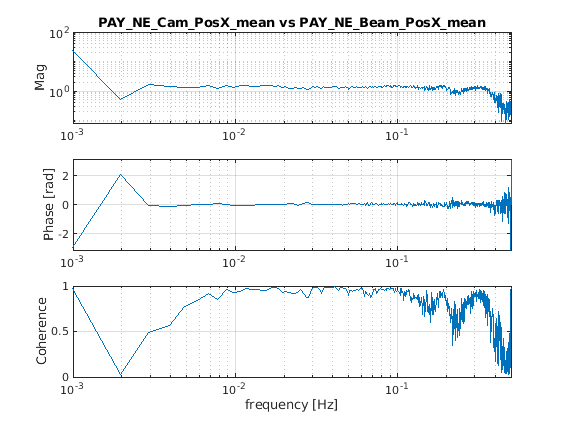

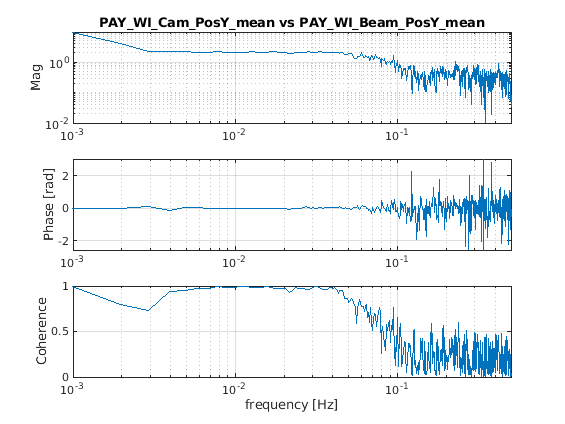

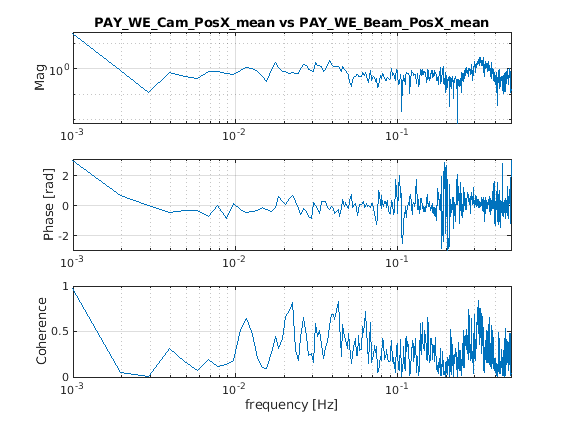

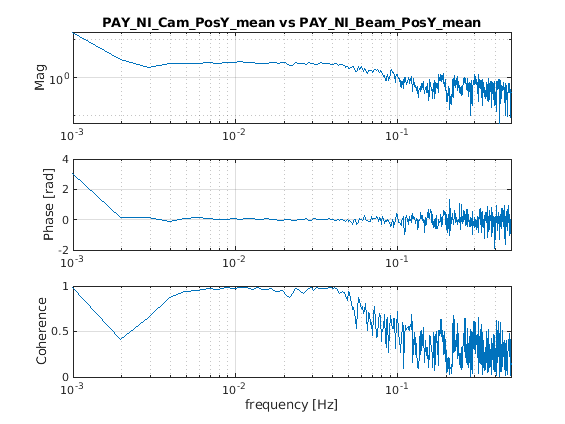

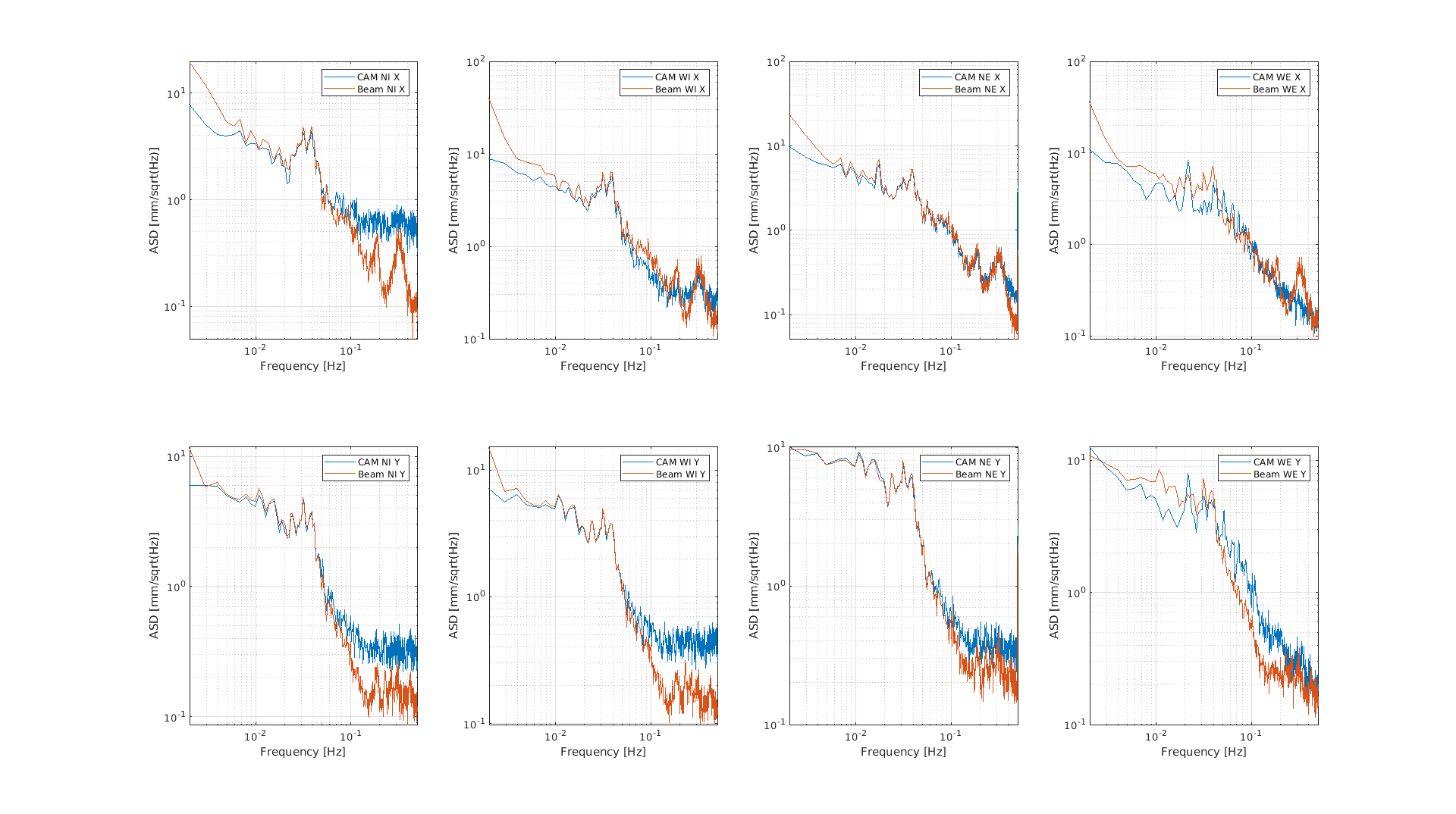

The analysis is in the following plots and the beam camera signals (last plot) have been rescaled accordingly to the TF values

Images attached to this comment
