AdV-NNC (NEB)
ruggi - 14:33 Friday 24 March 2023 (59413) Print this report
Comment to Tiltmeter installation in the North End building (59374)

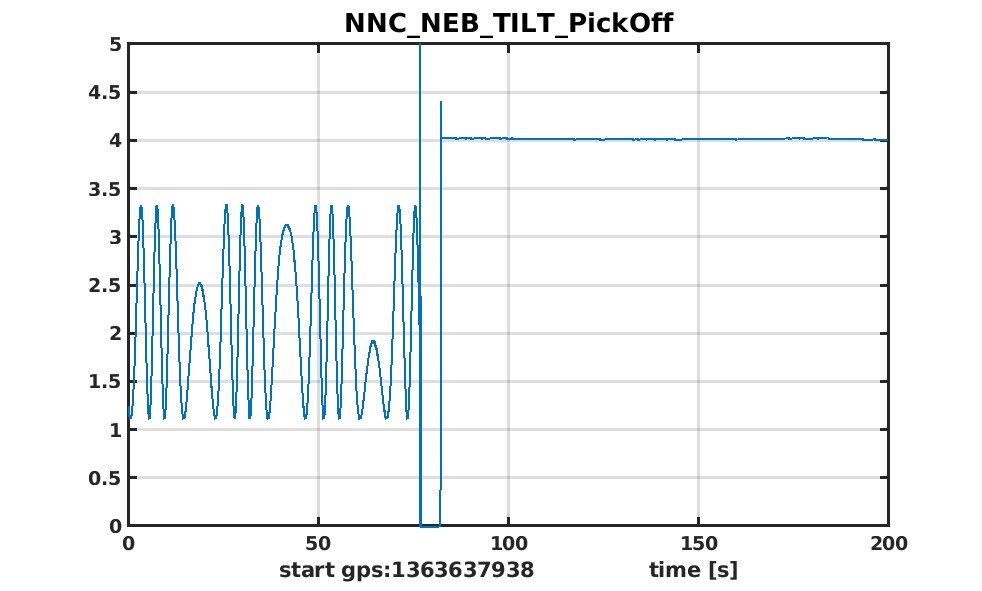

The tiltmeter collected very nice data for several hours, even if it was running open loop and the excursion was larger than the sensor range. Then, at about 20:20 UTC, the signal disappeared (fig 1).

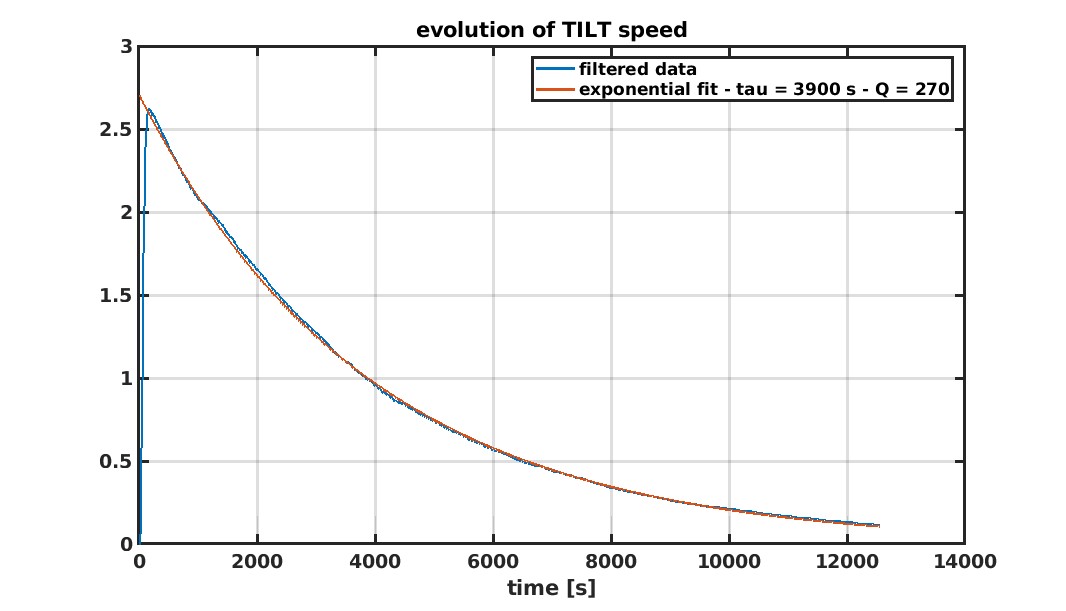

From 3 hours and half of free oscillation, applying an appropriate filtering, the evolution of the angular speed can be evaluated (fig 2). The time decay and the Q factor, equal to 270, has been obtained from an exponential fit. It seems quite high, for a resonance at 22 mHz. The mechanical losses are appreciably low.

Images attached to this comment
