Injection system (General activities)
pillant - 16:10 Friday 30 March 2018 (40964) Print this report
IMC gain adgustment and BPC correction reduction

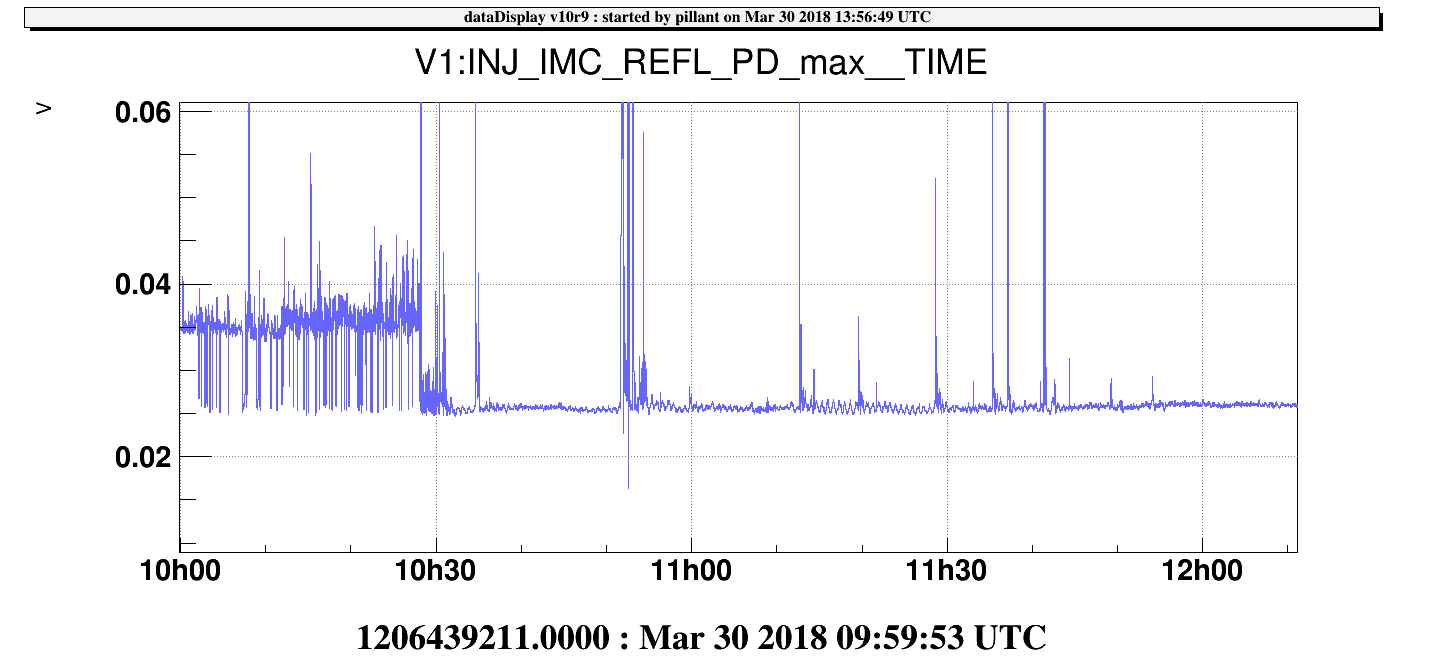

The attenuation of the IMC main loop was changed from 27 to 30dB in order to avoid bistable behavior (see attached plot 1).

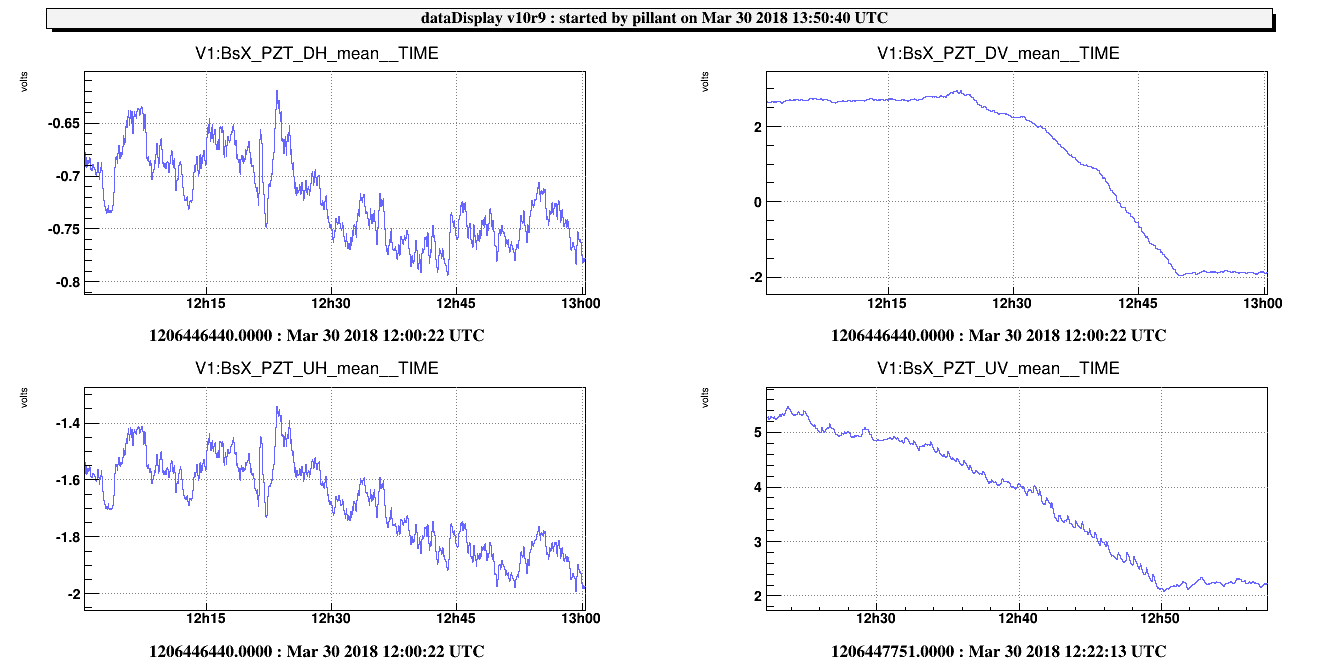

The BPC corrections were reduced (5 to 2V) for one of PZT. The zeroing of the four degrees of freedom will be done tuesday morning (see attached plot 2).

Images attached to this report
