AdV-DET (Commissioning)
gouaty, mantovani, ruggi - 18:03 Friday 23 June 2017 (38212) Print this report
realigning B4 beam on SPRB

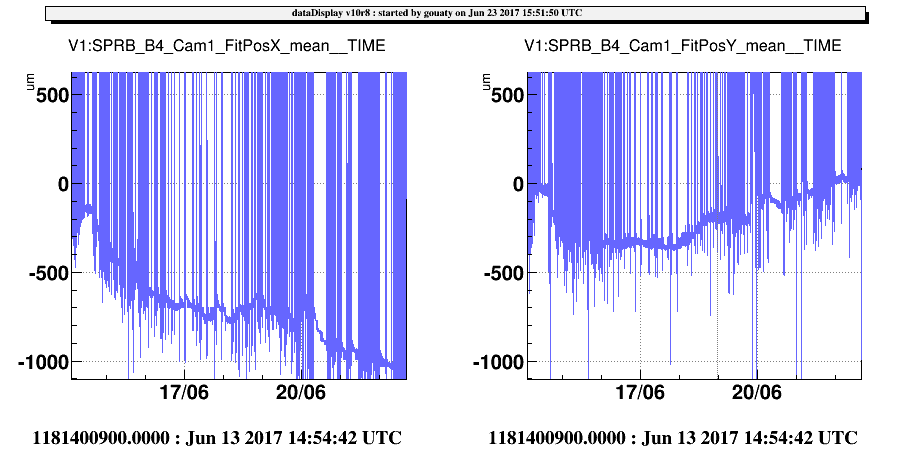

This afternoon we noticed that the position of the B4 beam on the camera 1 had been drifting since a week and was now horizontally miscentered by 1 mm (see Fig.1).

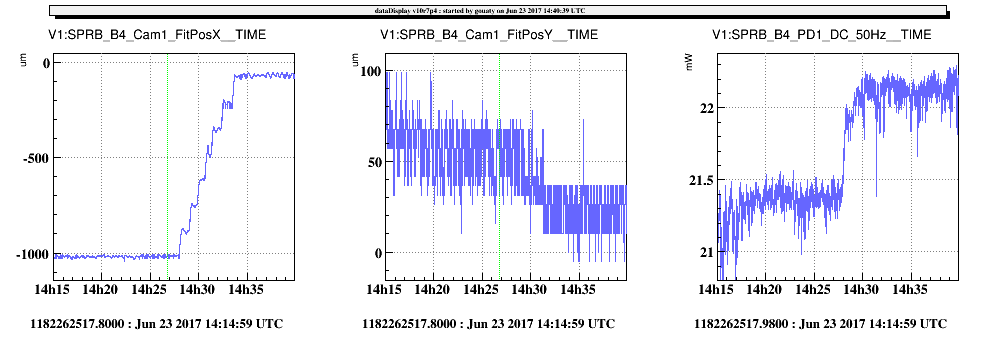

Thus Paolo realigned  the beam at the center of the camera moving in TY the PR filter 7. Fig.2 shows what happened during this realignment. There is a clear increase of power on the B4 photodiode, which confirms that the previous sitation was not good (beam clipping on the photodiode).

Images attached to this report
Comments to this report:
bonnand, gouaty - 18:44 Tuesday 27 June 2017 (38288) Print this report

This afternoon we noticed that the B4 beam was slightly miscentered again. We centered it back on the camera by adjusting the SPRB bench setpoints from -210 to -203 urad in TX and from 90 to 86 urad in TY.
