AdV-INF (Virgo Reference System Geometry)a.paoli, c.fabozzi, l.paoli - 0:45 Wednesday 10 February 2016 (33220)

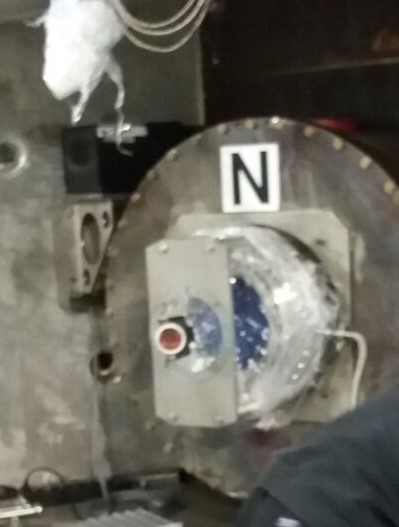

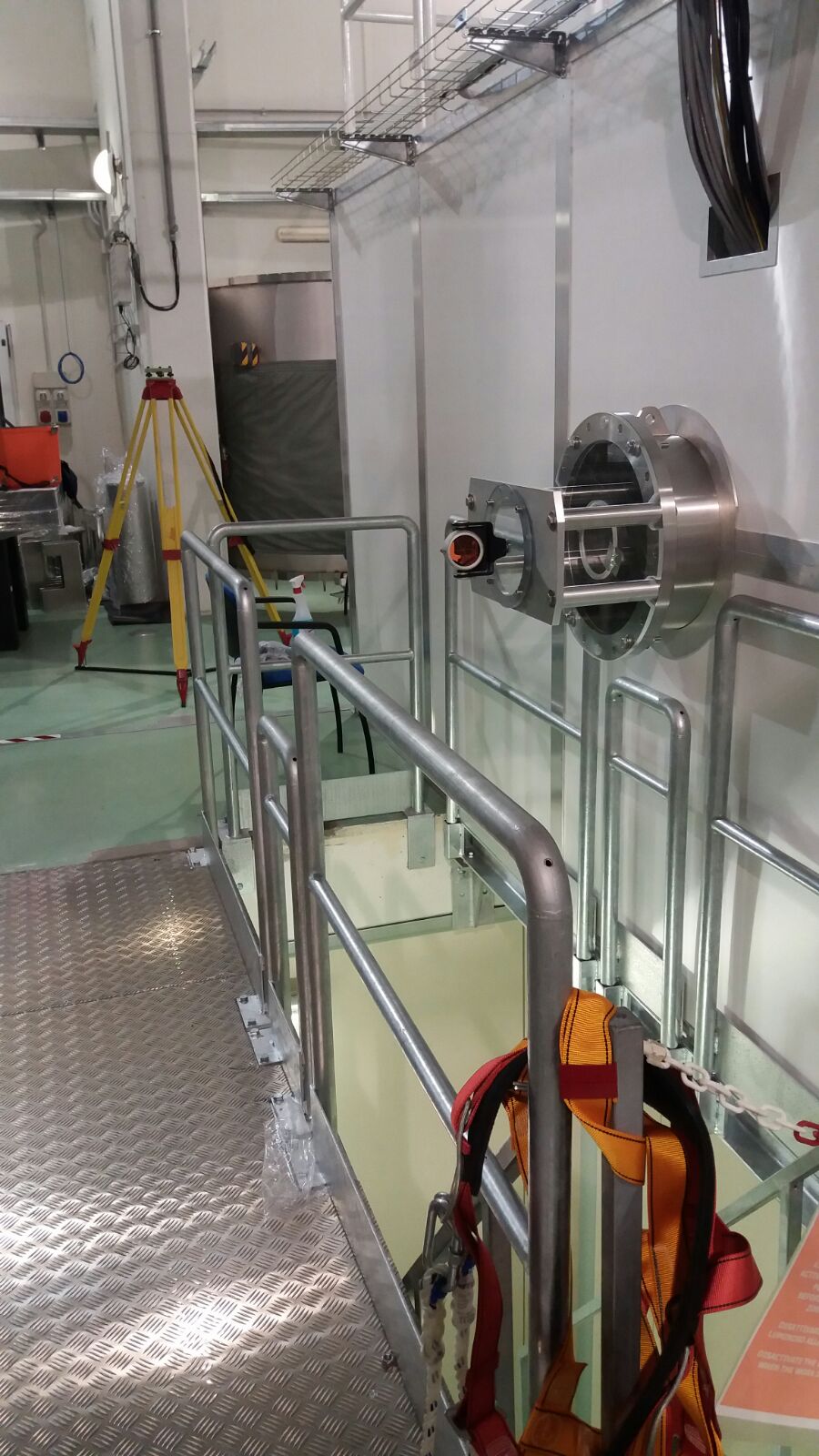

Print this reportVRS Geometry (survey of NEF and SNEBF Last Mon Feb8, we carried out the survey of 3D position of the two special tools installed on both sides of the link NE-SNEB (Fig.1 and 2; ref. eLog 33198).

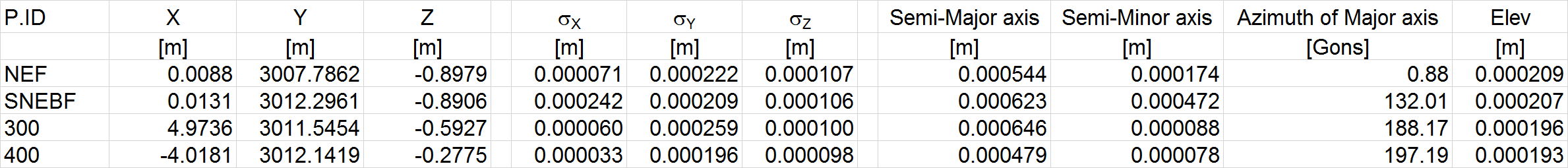

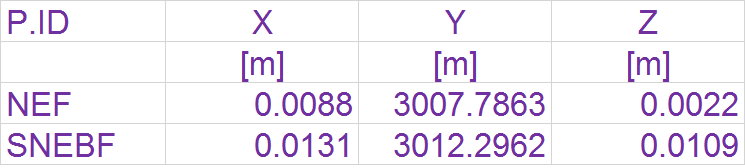

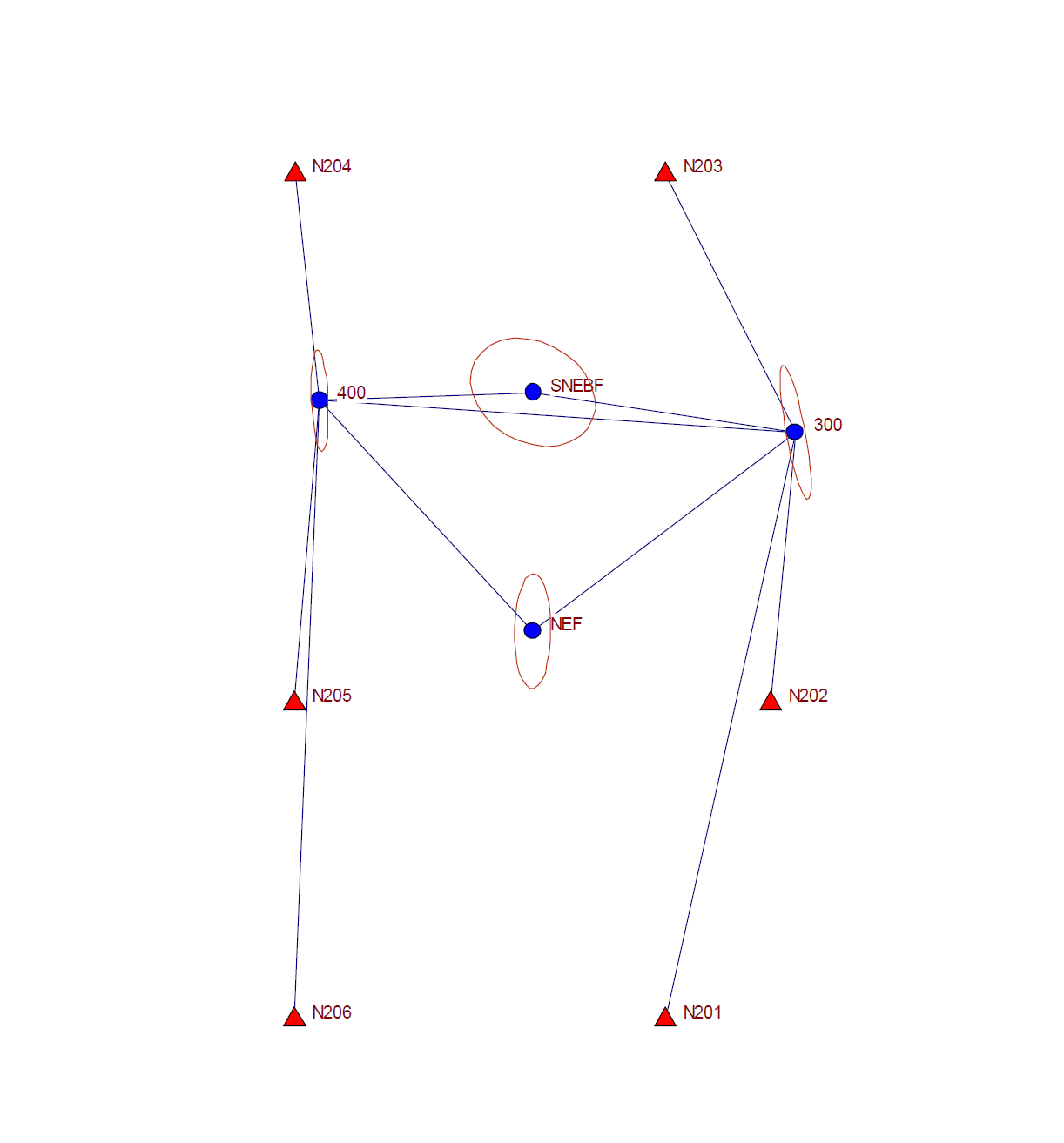

Tab.1 reports the VRS coordinates after the adjustment and Fig.3 the survey network scheme. As for the previous NE surveys, Tab.2 shows the rotated coordinates with reference to the ITF plane.
