AdV-INF (Virgo Reference System Geometry)paoli - 15:07 Thursday 24 December 2015 (33043)
Print this reportVRS Geometry (survey of the EDB position)Last Wed 9 Dec the position of the EDB has been re-determined (see also eLog 32471 - note that EDB-SW and EDB-NW are the corner points of the bench, differently from the June survey)

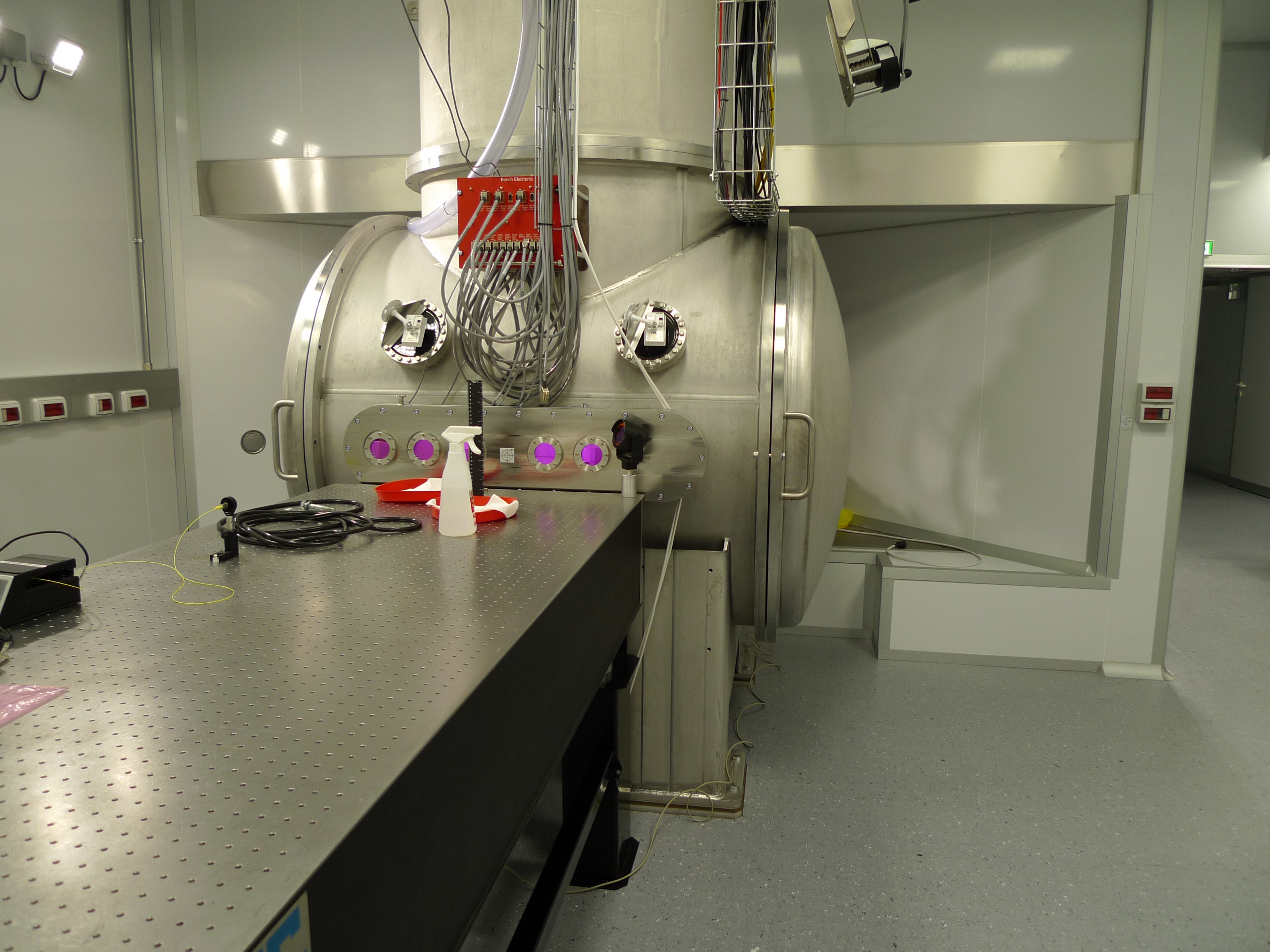

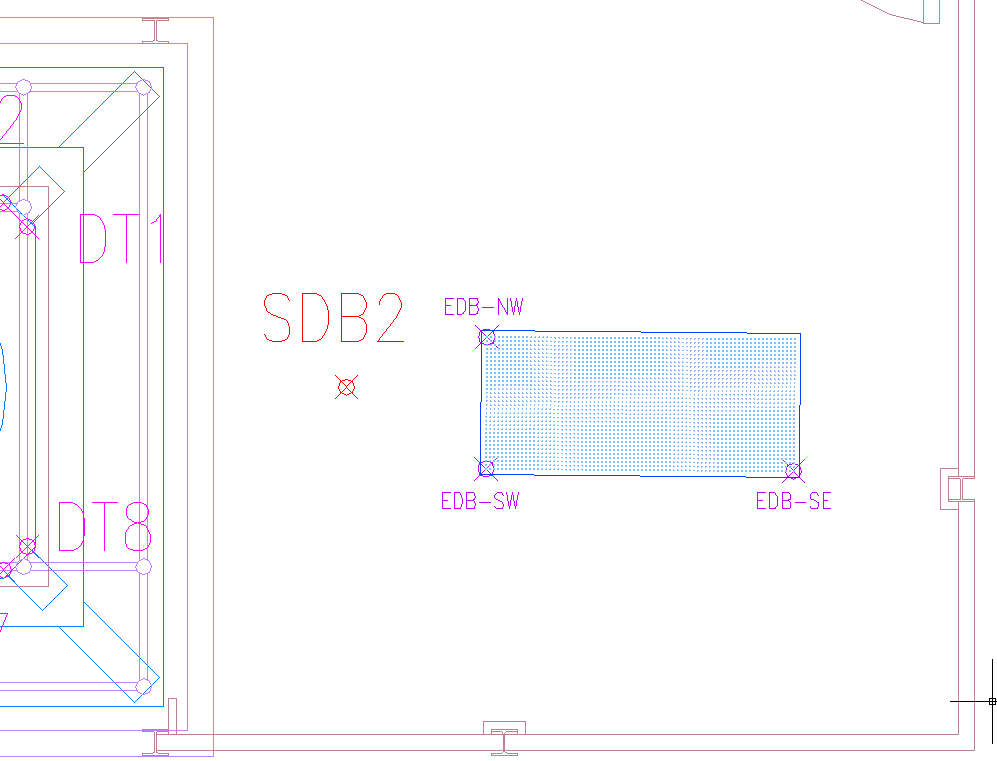

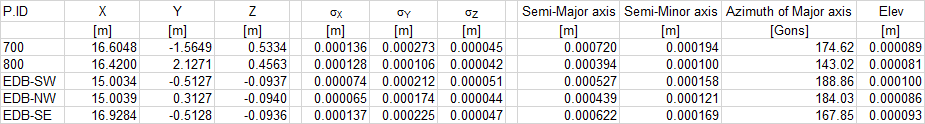

Tab.1 reports the VRS coordinates of the measured points after the adjustment, Fig.1 to 3 show some pictures and the scheme of the survey.
