Length Sensing and Control (North cavity locking)
Vajente - 10:34 Thursday 04 March 2010 (26469) Print this report
Cavity sweep

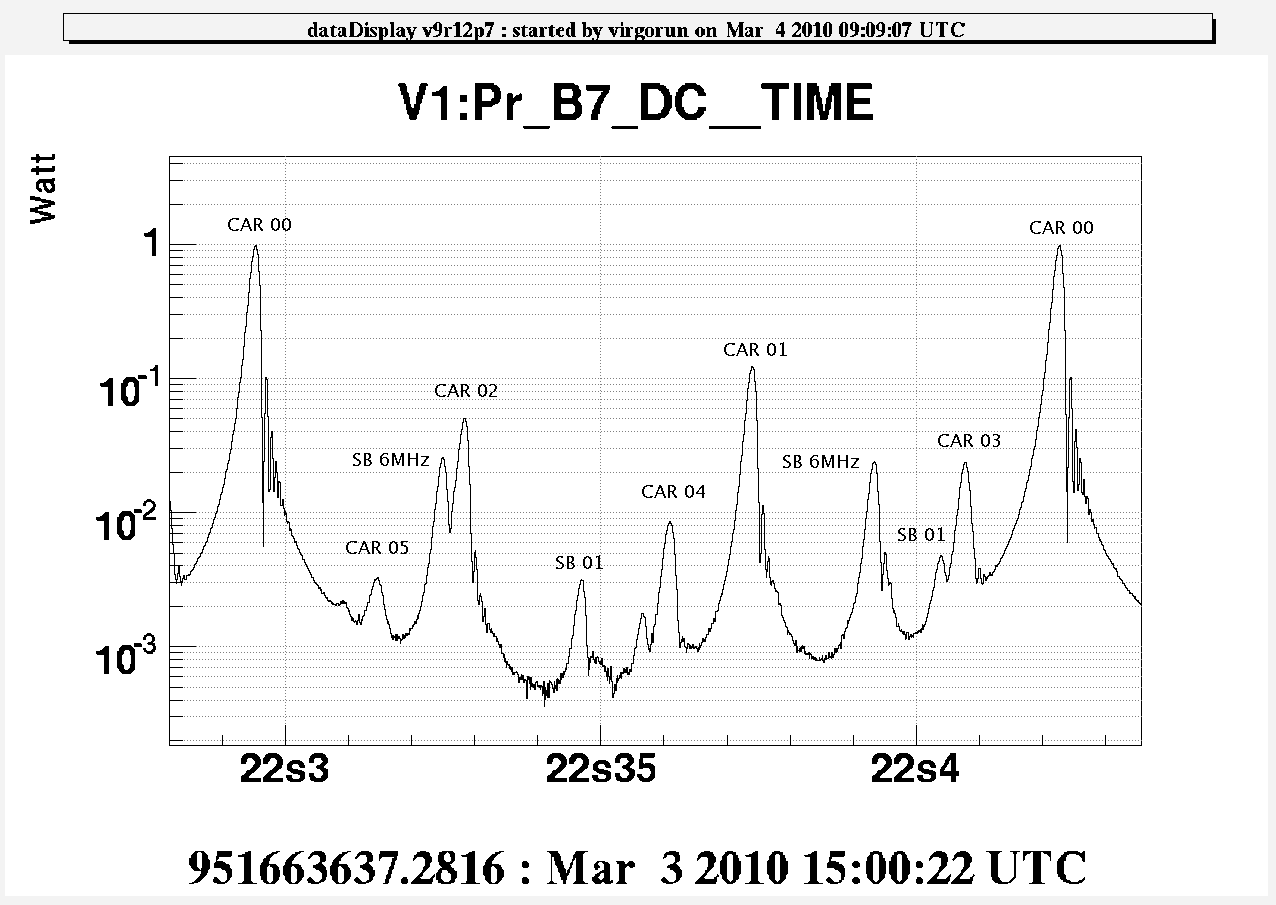

The attached plot shows a sweep of the north cavity, with all modes labeled. The matching was roughly good (5% in TEM02) and the alignment quite bad (12% in TEM01).

The ringing effect due to "fast" mirror motion is also well visible around main peaks.
Images attached to this report
