Alignment (Alignment)ruggi, mantovani, marque - 17:20 Friday 06 July 2007 (17479)

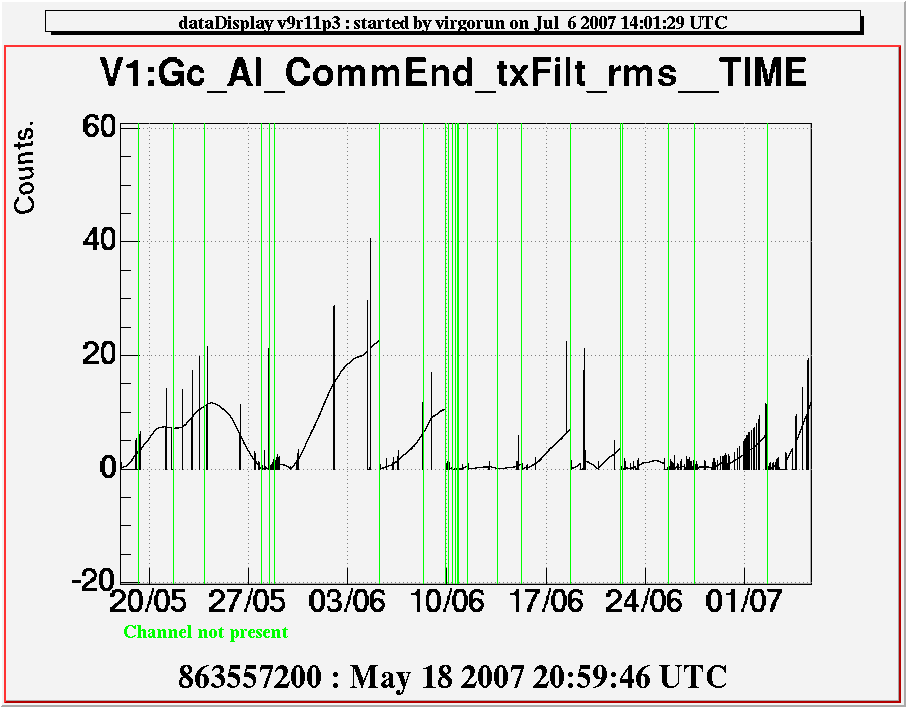

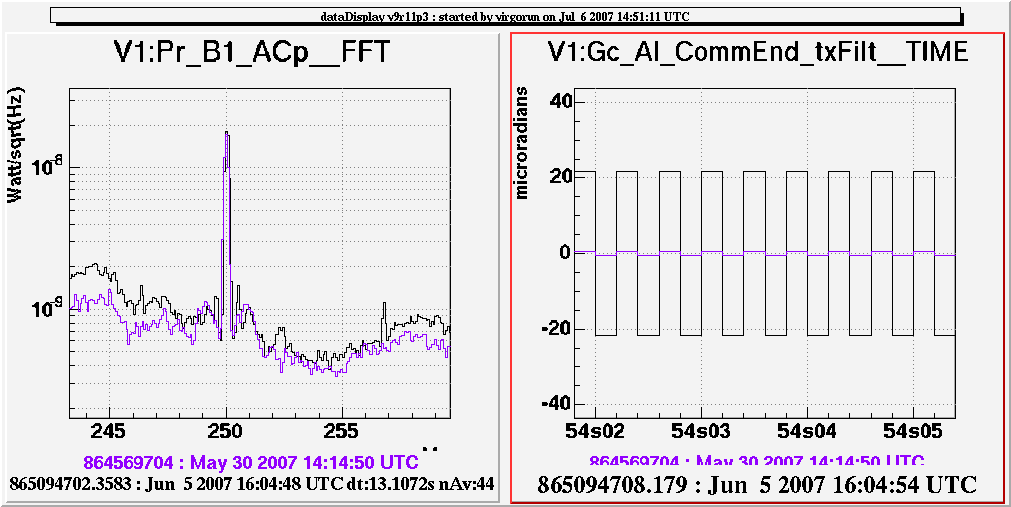

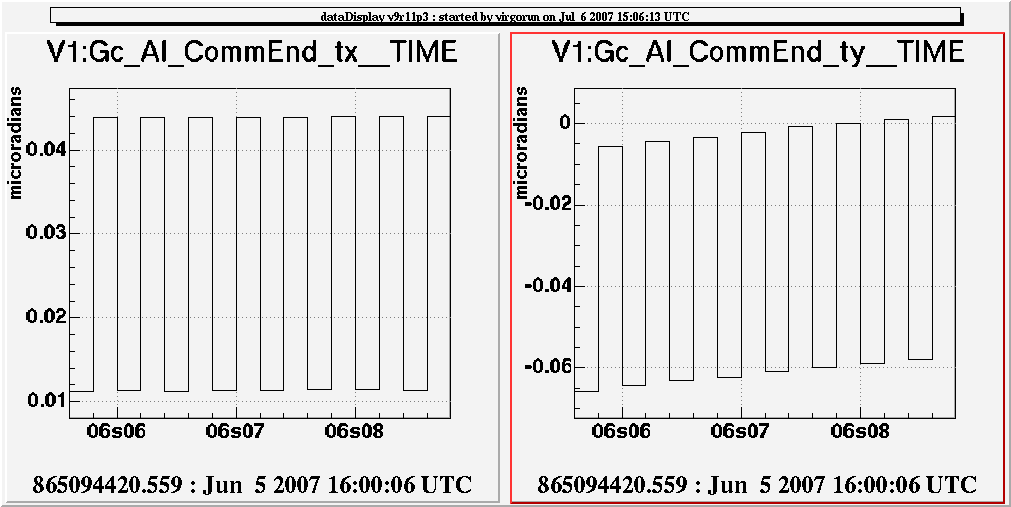

Print this report250Hz peak in Gc_Al_CommonEndA huge oscillation at 250 Hz (the half of the sempling frequency) is present in the AA CommonEnd error signal (fig 1). The amplitude is variable in the time, and in general is low after a restart of Gc (fig 2). The effect on the sensitivity seems to be null (fig 3).
