	Yesterday, we have measured the throughput power of SIB1.

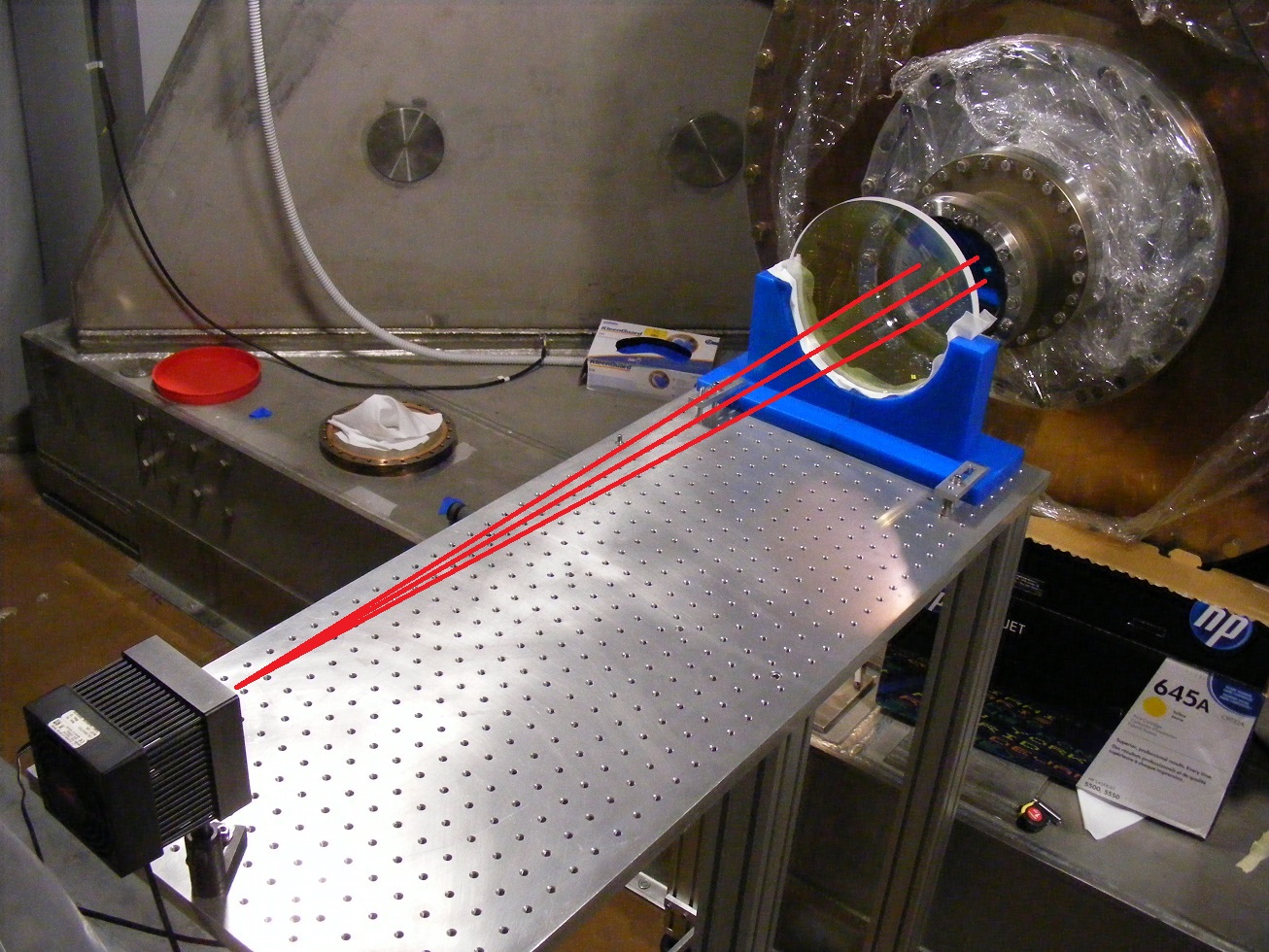

As shown on the attached picture, we measured the transmitted power out of the INJ Tower with an high power calorimeter and a 1m focal length “lentone” (old Virgo end bench lens).
We have measured 15.7W output power (taking account lens transitivity) for 21.6W measured before the last mirror of the EIB.
--------------------------------------
Total throughput losses on SIB1 : <28%
--------------------------------------

Losses Budget and SIB1 Throughput:
IMC mismatching: 8.9%
M11 transitivity: 1%
Faraday Isolator Throughput losses 5%
IPC Throughput losses 6% (see log entry 31247)
MC throughput losses : 28.0-20.9 = 7.1%

So, if we are able to recover the previous matching on the IMC cavity about 94%, it should be possible to reach 25% of losses on SIB1 and we hope 30% for all the injection system as expected.
